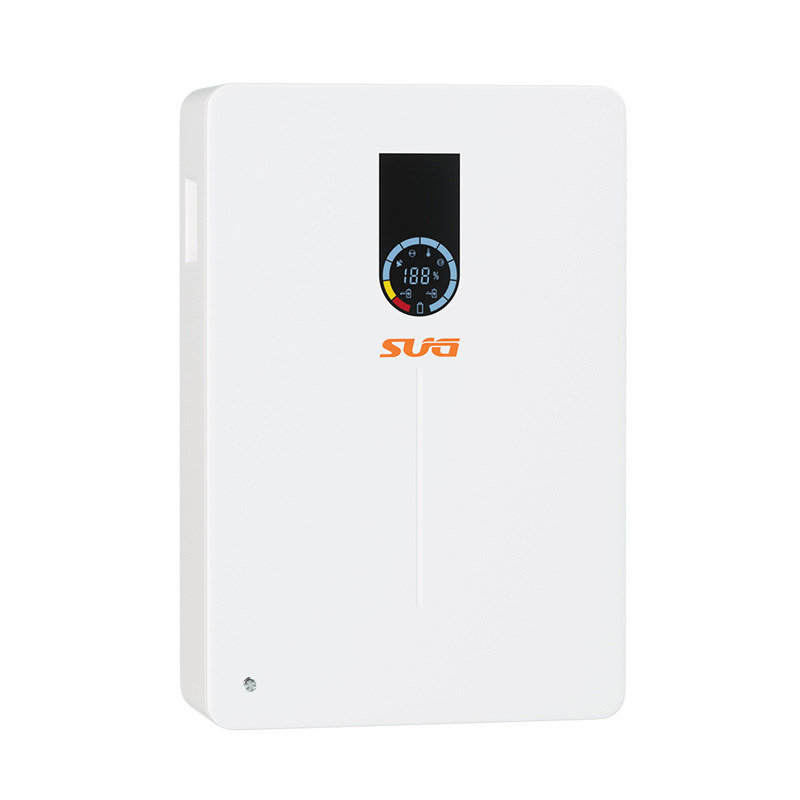

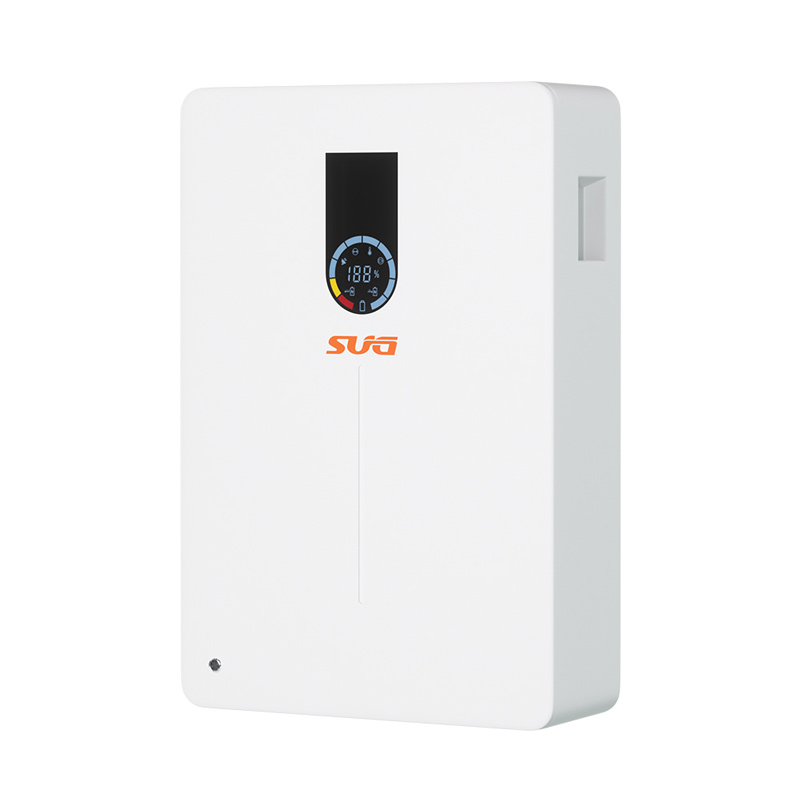

عربي SPW-B 48V/51.2V 100Ah Power Wall Lithium Energy Storage Battery
48V/51.2V 100Ah/200Ah/280Ah
• BMS protection

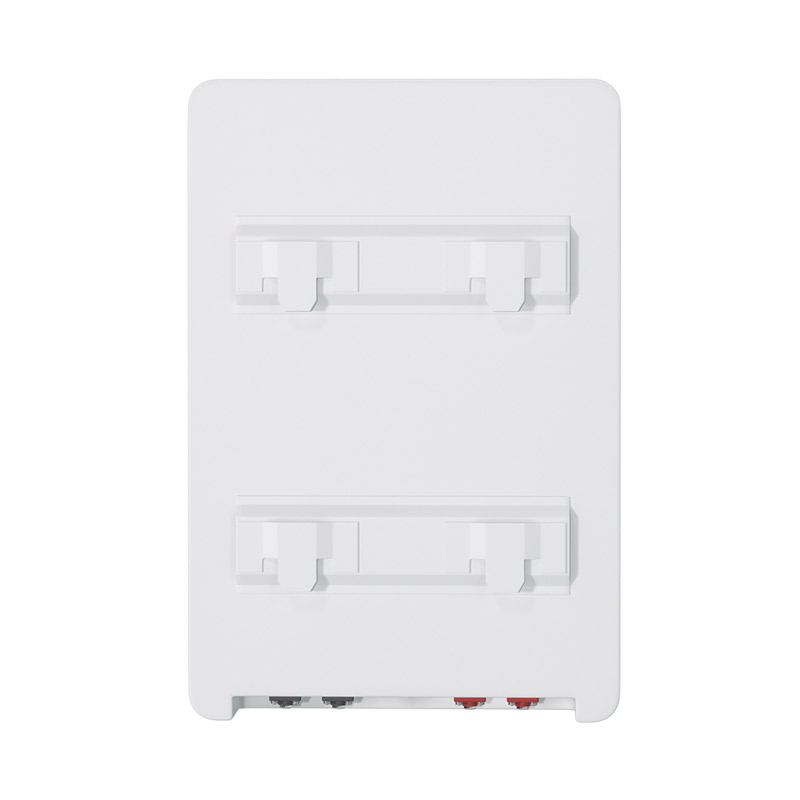

• Wall hanging design
• Home energy storage
• Intelligent communication
The SPW Power Wall lithium energy storage battery, uses high cycle lithium iron phosphate cells, which are more convenient and aesthetically pleasing to install. The high-performance BMS protection and management battery system has a wider range of use and longer lifespan than traditional batteries. Using SUG's exclusive color screen design, you can check the battery's operation status quickly and conveniently.
1. Grade A LiFePO4 cell
2. Parallel support for 15PCS
3. Compatible with multiple inverter brands
4. 6000 cycles @ DOD80%
5. Bluetooth/WIFI optional
6. BMS 100A/150A/200A optional

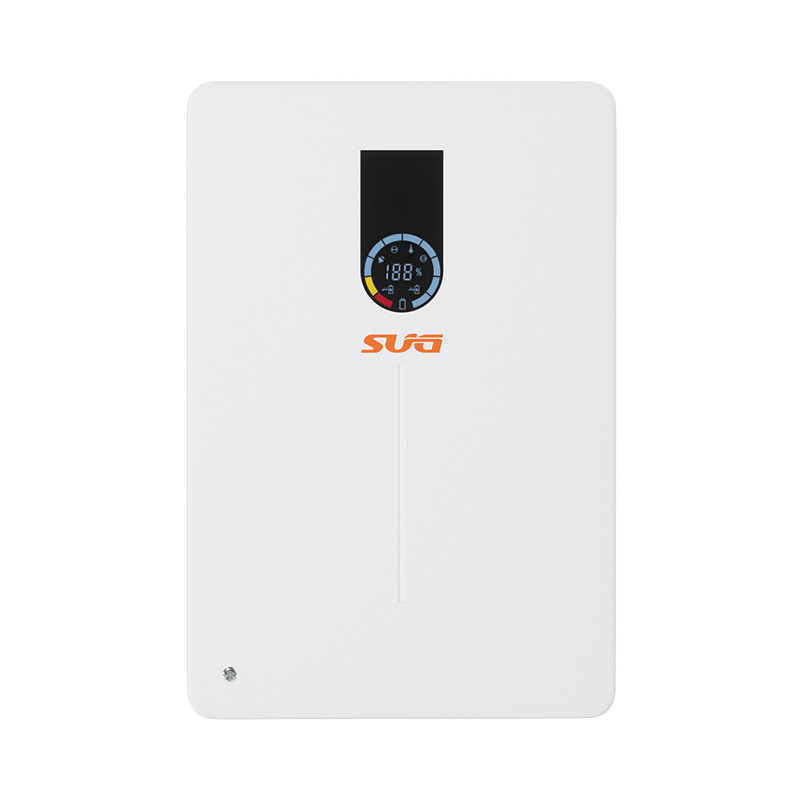

7. LCD color display screen
※ Energy storage system, control system, alarm system, power system, database
※ Emergency lighting system, emergency power supply, UPS
※ Telecommunications, communication, and fire protection
| Model | SPW-48280 | SPW-51.2280 |
| Standard voltage | 48V | 51.2V |
| Standard capacity | 280Ah | 280Ah |
| Rated capacity | 14.4kWh | 15.36kWh |
| Working voltage | 40.5-54V | 43.2-57.6V |
| Standard charging current | 150A | 150A |
| Standard discharging current | 200A | 200A |
| Suggested DOD | 80% | |
| Cycle life | >6000 cycles | |
| IP Rating | IP21(IP65 optional) | |
| Discharge operating temperature | -20℃-60℃ | |
| Charging operating temperature | 0℃-45℃ | |
| Maximum parallel | 15PCS | |

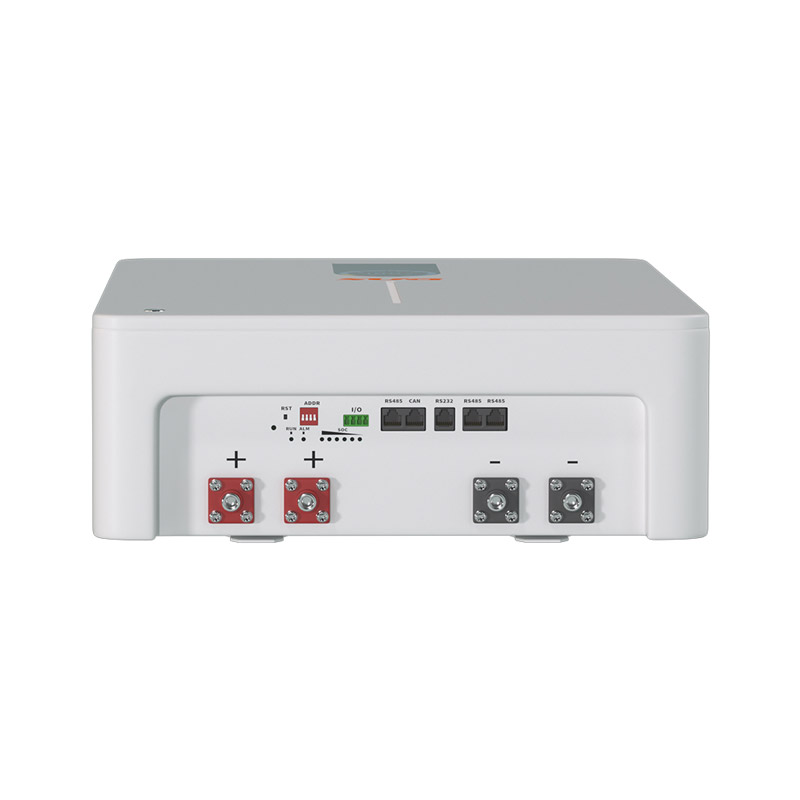

| Communication | RS232/CAN/RS485 (WIFI/BT optional) | |
| Display | LCD color screen/LCD touch screen (optional) | |
| Warranty | 5 Years | |
| Certificate | UN38.3/MSDS/CE/ROHS/FCC | |
| NW.(kg) | 115 | 118.1 |
| GW.(kg) | 133 | 139.1 |
| Product size (mm) | 790*530*268 | 790*530*268 |
| Package size（mm） | 850*590*300 | 900*630*480 |
