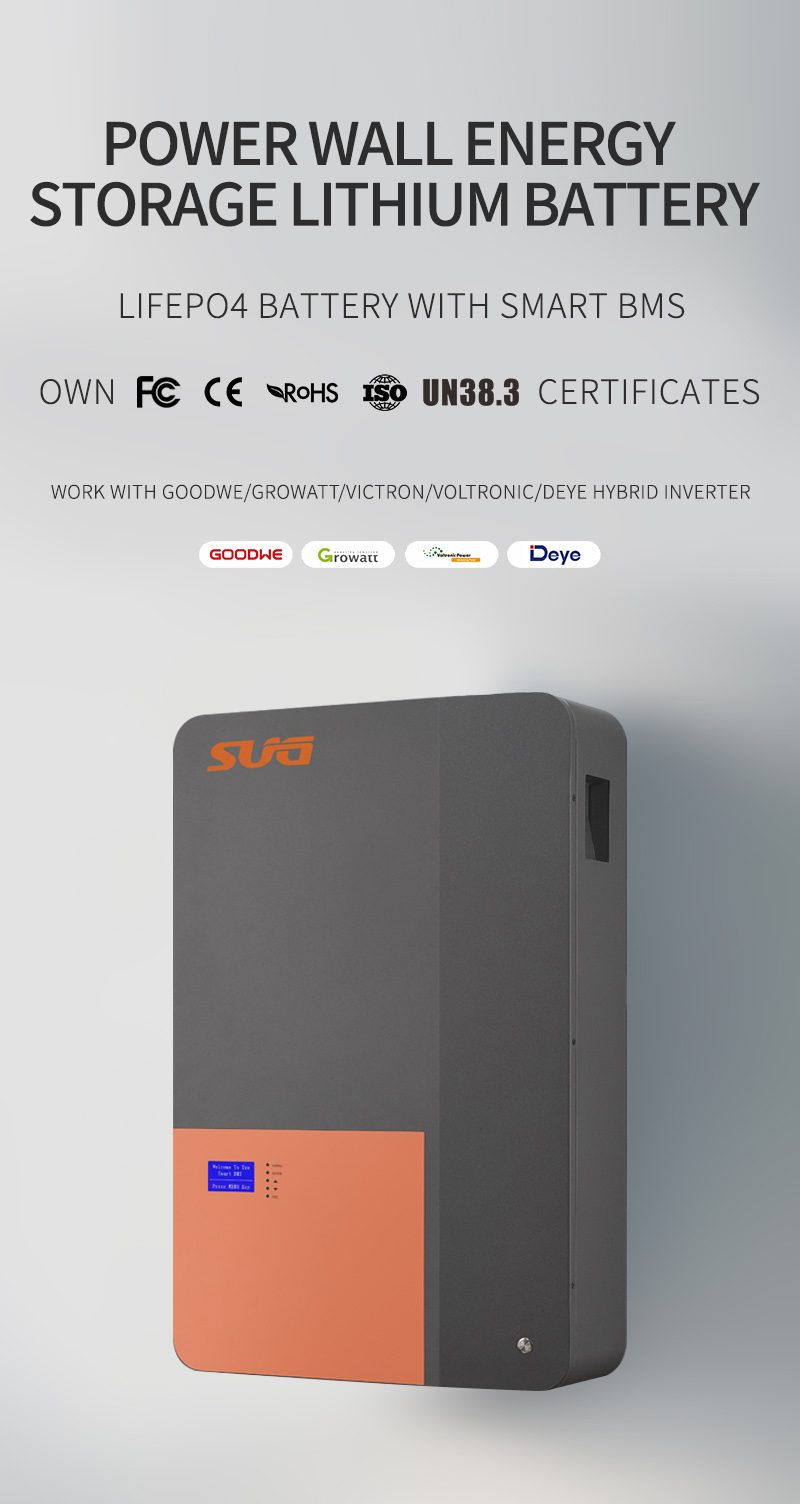

Lithium Iron Phosphate Battery Power Wall 48v 50ah 2.4kwh 51.2v 2.56kwh

Lithium Iron Phosphate Battery Power Wall 48v 50ah 2.4kwh 51.2v 2.56kwh

1.power wall series with 2.4kwh capacity 48v 15s 2.with BMS/RS485/CAN/parallel and WIFI/bluetooth optional 3.max parallel 16pcs to 38.4kwh 4.0.5c charging current and 1c discharging current 5.support most hybrid inverter,like Growatt,Deye,Luxpower,Voltronic... 6.5 years warranty 7.with CE,ROHS,FCC,MSDS,UN38.3 and pass ISO 8.support OEM/ODM

0577-62967308

Products Features:

1.power wall series with 2.4kwh capacity 48v 15s

2.with BMS/RS485/CAN/parallel and WIFI/bluetooth optional

3.max parallel 16pcs to 38.4kwh

4.0.5c charging current and 1c discharging current

5.support most hybrid inverter,like Growatt,Deye,Luxpower,Voltronic...

6.5 years warranty

7.with CE,ROHS,FCC,MSDS,UN38.3 and pass ISO

8.support OEM/ODM

Specification:

Model SPW-48v50ah

SPW-51.2v50ah

Capacity 2.4kwh 2.56kwh
Standard Voltage 48v 51.2v
Working Voltage 40.5-54v 43.2-57.6v
Charging Current 25a
Discharging Current 50a
Suggested DOD 80%-90%
Installation power wall
IP rating IP21
Max Parallel 16pcs
Warranty 5 years
Communication CAN/RS485(WIFI/Bluetooth/4G optional)
Product Size(mm) 560*400*230mm
Packing Size(mm) 680*530*380mm
N.W./unit(kg) 30kg 33kg
G.W./unit(kg) 35kg 38kg



File Name Description Size Download
SPW 48v manual 1.64MB
SPW catalogue 7.07MB
CE 0.33MB
FCC 0.33MB
ROHS 0.3MB
0MB
