Products Features:

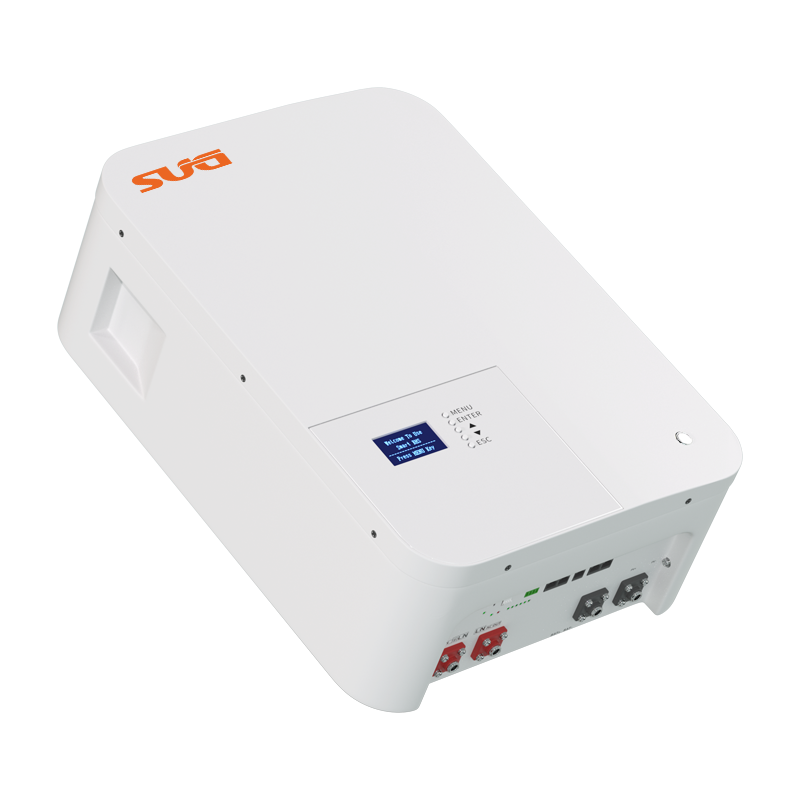

1.power wall series with 9.6kwh capacity 48v 15s
2.with LCD/BMS/RS485/CAN/parallel and WIFI/bluetooth optional
3.max parallel 16pcs to 160kwh
4.0.5c charging current and 0.5c discharging current
5.support most hybrid inverter,like Growatt,Deye,Luxpower,Voltronic...
6.5 years warranty
7.with CE,ROHS,FCC,MSDS,UN38.3 and pass ISO
8.support OEM/ODM
Specification:
| Model | SPW-48v200ah |
SPW-51.2v200ah |
| Capacity | 9.6kwh | 10.24kwh |
| Standard Voltage | 48v | 51.2v |
| Working Voltage | 40.5-54v | 43.2-57.6v |
| Charging Current | 100a | |
| Discharging Current | 100a | |
| Suggested DOD | 80%-90% | |
| Installation | power wall | |
| IP rating | IP21 | |
| Max Parallel | 16pcs | |
| Warranty | 5 years | |
| Communication | CAN/RS485（WIFI/Bluetooth/4G optional） | |
| Product Size(mm) | 590*490*190mm | |
| Packing Size(mm) | 790*650*380mm | |
| N.W./unit(kg) | 70kg | 75kg |
| G.W./unit(kg) | 75kg | 80kg |
