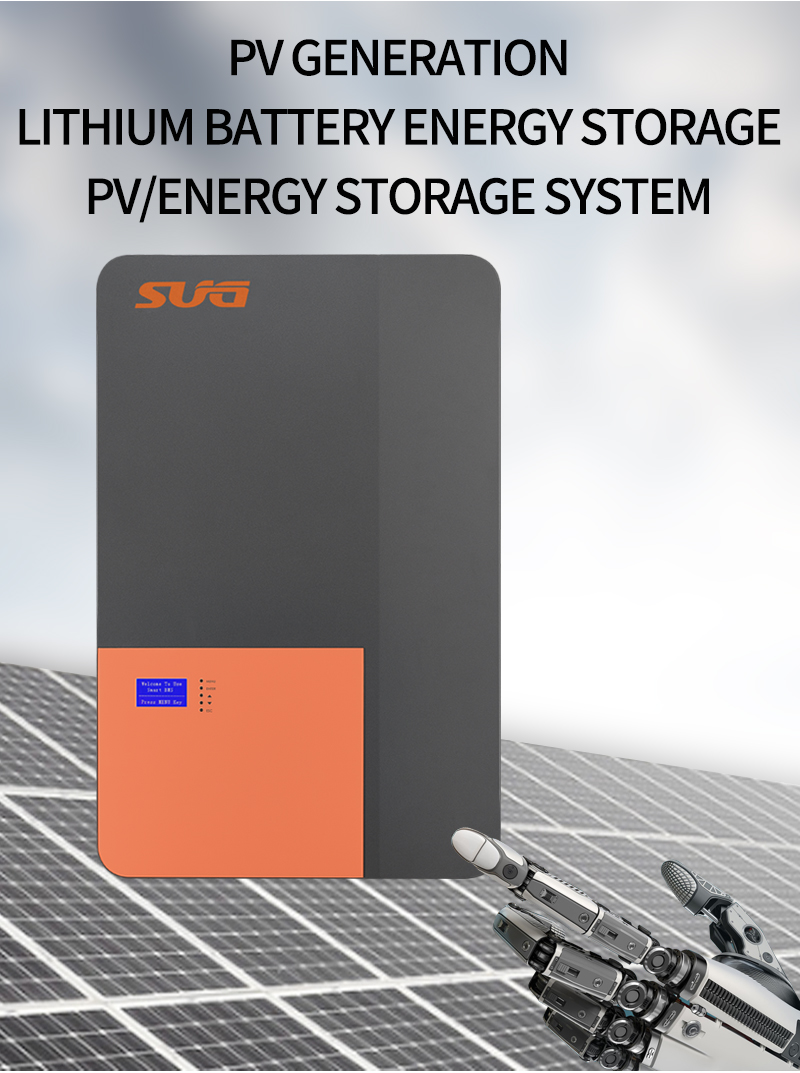

SPWN-Wall Mounted Lifepo4 Energy Storage Battery 48V 100Ah 4.8kWh
Products Features:
1.power wall series with 4.8kwh capacity 48v 15s
2.with LCD/BMS/RS485/CAN/parallel and WIFI optional
3.max parallel 15pcs to 80kwh
4.0.5c charging current and 1c discharging current
5.support most hybrid inverter,like Growatt,Deye,Luxpower,Voltronic...
6.5 years warranty
7.with CE,ROHS,FCC,MSDS,UN38.3
8.support OEM/ODM
Specification:
| Model | SPW-48v100ah |
| Capacity | 4.8kwh |
| Standard Voltage | 48v |
| Working Voltage | 40.5-54v |
| Charging Current | 50a |
| Discharging Current | 100a |
| Suggested DOD | 80%-90% |
| Installation | power wall |
| IP rating | IP20 |
| Max Parallel | 15pcs |
| Warranty | 5 years |
| Communication | CAN/RS485（WIFI/Bluetooth/4G optional） |
| Product Size(mm) | 558*400*228mm |
| N.W./unit(kg) | 51.5kg |
