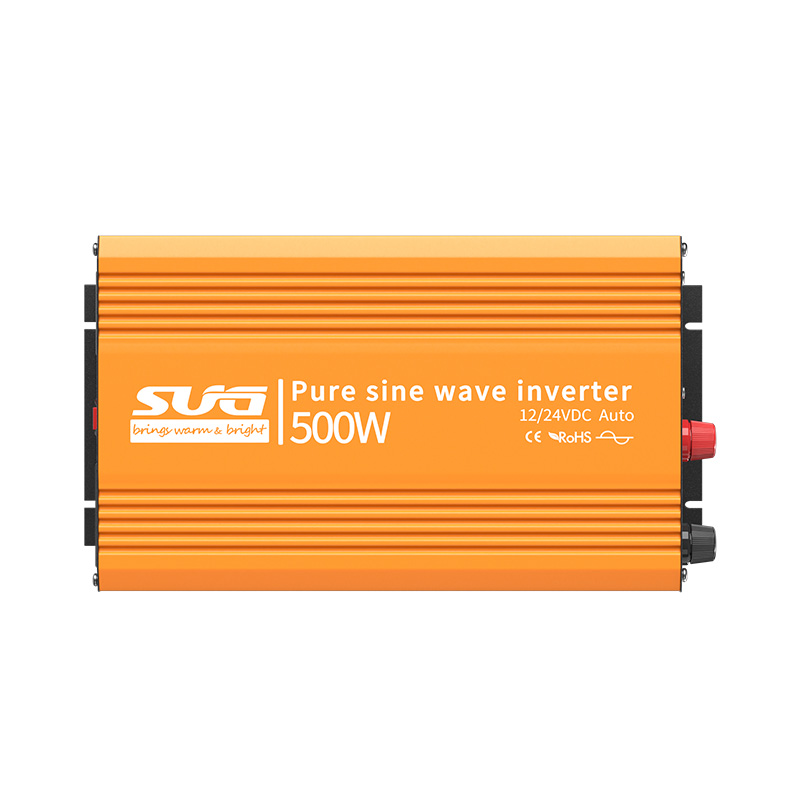

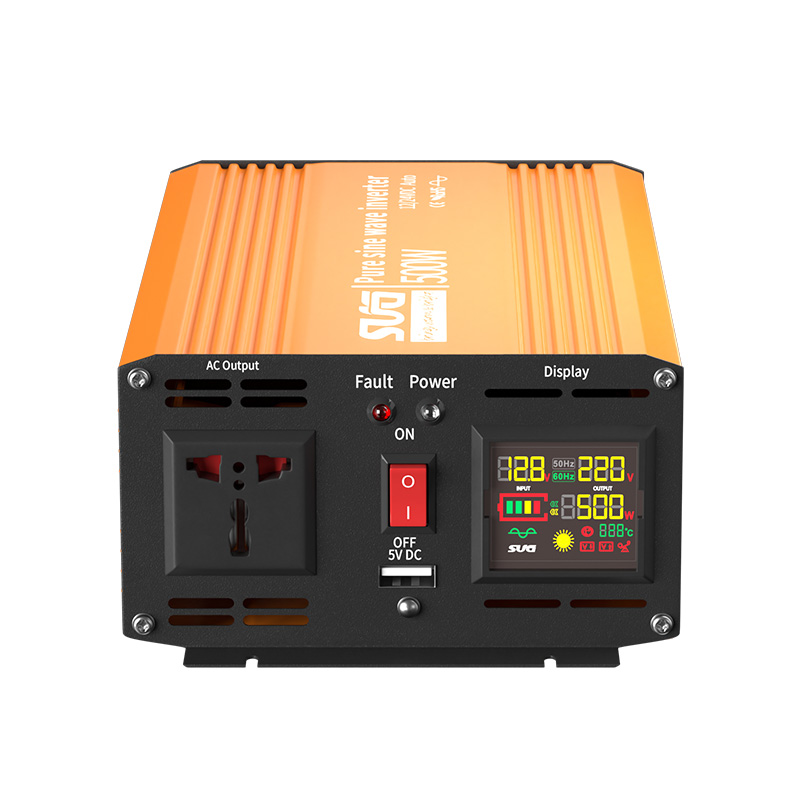

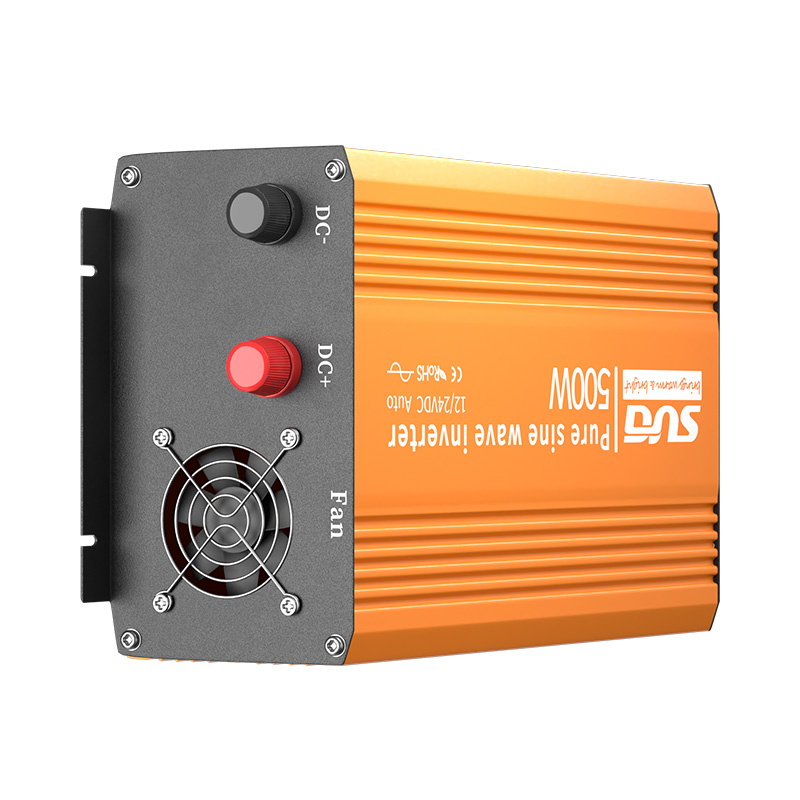

500w Pure Sine Wave Inverter Double Input Voltage 12/24VDC

500w Pure Sine Wave Inverter Double Input Voltage 12/24VDC

1.it is 500w-1000w 2.pure sine wave output with DC-AC 3.2 years warranty 4.12/24v double input voltage 5.100/110/115/120/220/230vac optional 6.EU/USA/Japan/UK/Australia/Universal socket optional 7.CE/FCC/ROHS/PSE/ETL and pass ISO 8.sufficient power watt with original imported chip,IGBT,MOSFET 9.accept OEM/ODM

0577-62967308

Product Feature:

1.it is 500w-1000w

2.pure sine wave output with DC-AC

3.2 years warranty

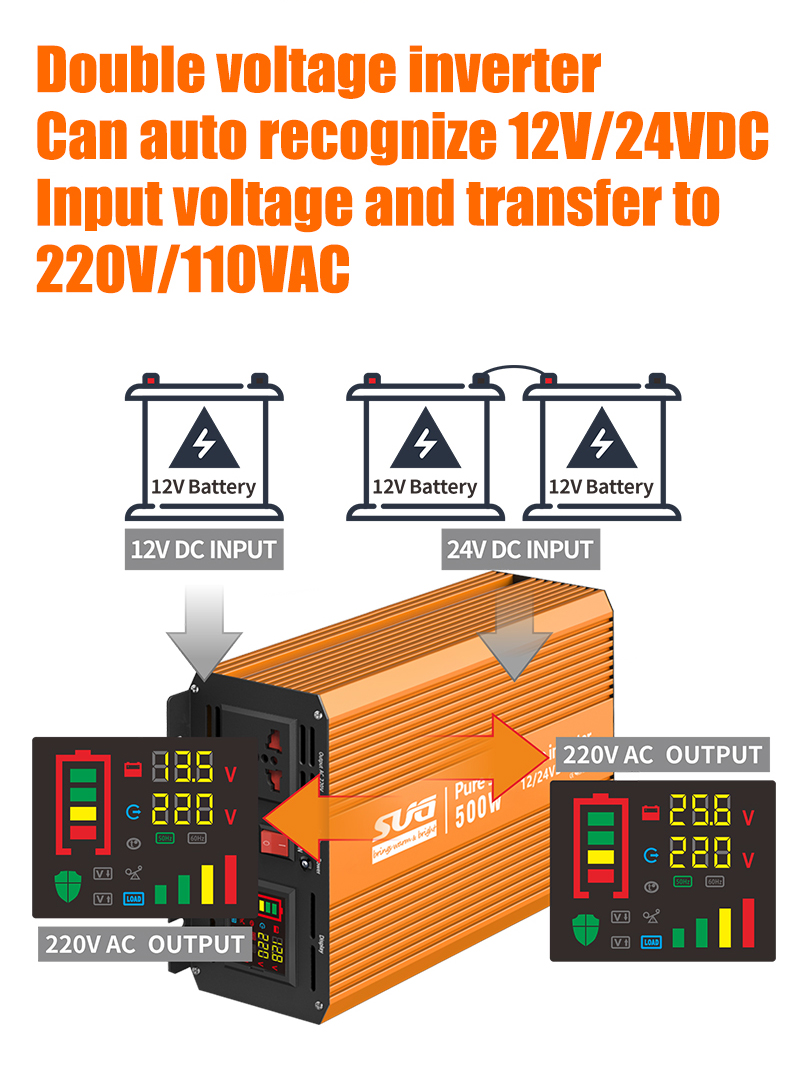

4.12/24v double input voltage

5.100/110/115/120/220/230vac optional

6.EU/USA/Japan/UK/Australia/Universal socket optional

7.CE/FCC/ROHS/PSE/ETL and pass ISO

8.sufficient power watt with original imported chip,IGBT,MOSFET

9.accept OEM/ODM

Specification:

Model SGPI-500A-122 SGPI-500A-242
Rated Power 500W
Surge Power 1000W(few seconds)
Input Voltage 12VDC 24VDC
24VDC
Output Voltage 220VAC±5%
USB Port 5V 2.4A
Frequency 50Hz±3
Output Waveform Pure Sine Wave
Soft Start YES
AC Regulation THD<3%(Linear Load)
Output Efficiency 92% MAX
DC Voltage Range 10-15.5V 20-31V
Low Voltage Alarm 10.5±0.5V 21±0.5V
Low Voltage Shut Down 10±0.5V 20±0.5V
Low Voltage Recovery 13±0.5V 24±0.5V
Over Voltage Shut Down 15.5±0.5V 31±0.5V
Over Voltage Recovery 14.8V±0.5V 29V±0.5V
Cooling Way Intelligent Cooling Fan
Protection Battery Low Voltage & Over Voltage, Over Load, Over Temperature, Short Circuit
Working Temperature -10℃ - +50℃
Net Dimension 240*150*80mm (L×W×H)
Inner Box Dimension 270*150*145mm (L×W×H)
Meas./Ctn 76*45*28cm / 10pcs
N.W./Unit 1.92kg (2.3kg With Inner Box)
G.W./Ctn 24.4KGS
Packing CARTON
Warranty 2 Years
File Name Description Size Download
SGPI manual 0.93MB
SGPI catalogue 8.02MB
CE-EMC 0.46MB
CE-LVD 0.46MB
FCC 0.33MB
ROHS 0.3MB
