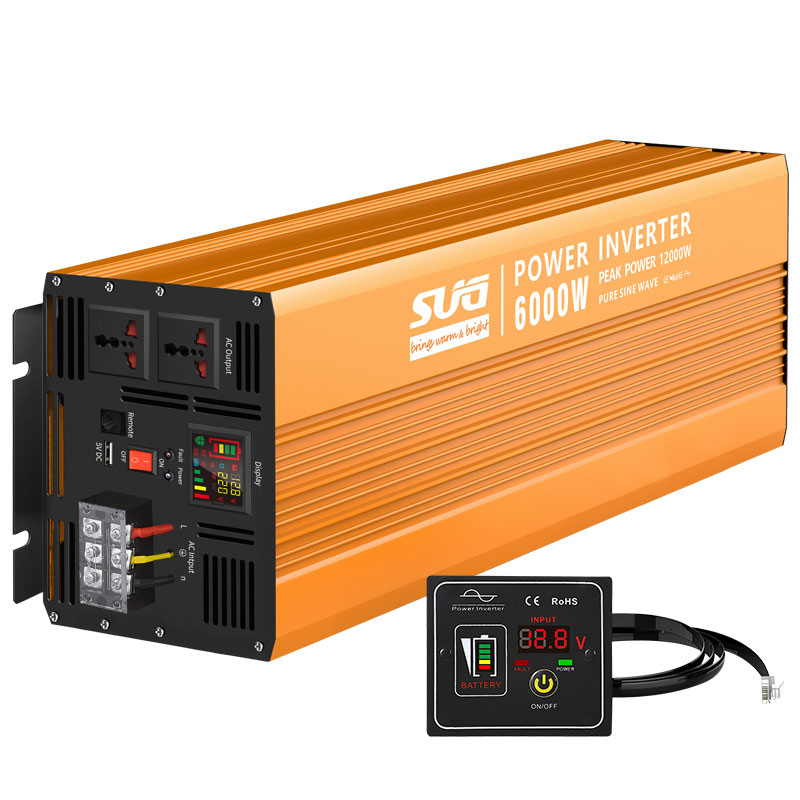

High Frequency Pure Sine Wave Inverter 6000W 36VDC For Solar System

High Frequency Pure Sine Wave Inverter 6000W 36VDC For Solar System

1.it is 300w-8000w 2.pure sine wave output with DC-AC 3.2 years warranty 4.12/24/48vdc optional and 36/60/72/84/96/110/120vac customization 5.100/110/115/120/220/230vac optional 6.EU/USA/Japan/UK/Australia/Universal socket optional 7.CE/FCC/ROHS/PSE/ETL and pass ISO 8.sufficient power watt with original imported chip,IGBT,MOSFET 9.accept OEM/ODM

0577-62967308

Product Feature:

1.it is 300w-8000w

2.pure sine wave output with DC-AC

3.2 years warranty

4.12/24/48vdc optional and 36/60/72/84/96/110/120vac customization

5.100/110/115/120/220/230vac optional

6.EU/USA/Japan/UK/Australia/Universal socket optional

7.CE/FCC/ROHS/PSE/ETL and pass ISO

8.sufficient power watt with original imported chip,IGBT,MOSFET

9.accept OEM/ODM

Specification:


Model SGPE6000A-121 SGPE6000A-122 SGPE6000A-241 SGPE6000A-242
SGPE6000A-481
SGPE6000A-482
Rated Power 6000W
Surge Power 12000W(few seconds)
Input Voltage 12VDC 24VDC 48VDC
Output Voltage 110VAC±5% 220VAC±5% 110VAC±5% 220VAC±5% 110VAC±5% 220VAC±5%
USB Port 5V2A
Frequency 50Hz±3 or 60Hz±3
Output Waveform Pure Sine Wave
Soft Start YES
AC Regulation THD<3%(Linear Load)
Output Efficiency 94% MAX
No Load Current 0.6A 0.3A 0.1A
DC Voltage Range 10-15.5V 20-31V 40-62V
Low Voltage Alarm 10.5±0.5V 21±0.5V 42±0.5V
Low Voltage Shut Down 10±0.5V 20±0.5V 40±0.5V
Low Voltage Recovery 13±0.5V 26±0.5V 52±0.5V
Over Voltage Shut Down 15.5±0.5V 31±0.5V 62±0.5V
Over Voltage Recovery 14.8±0.5V 29.6±0.5V 59.2±0.5V

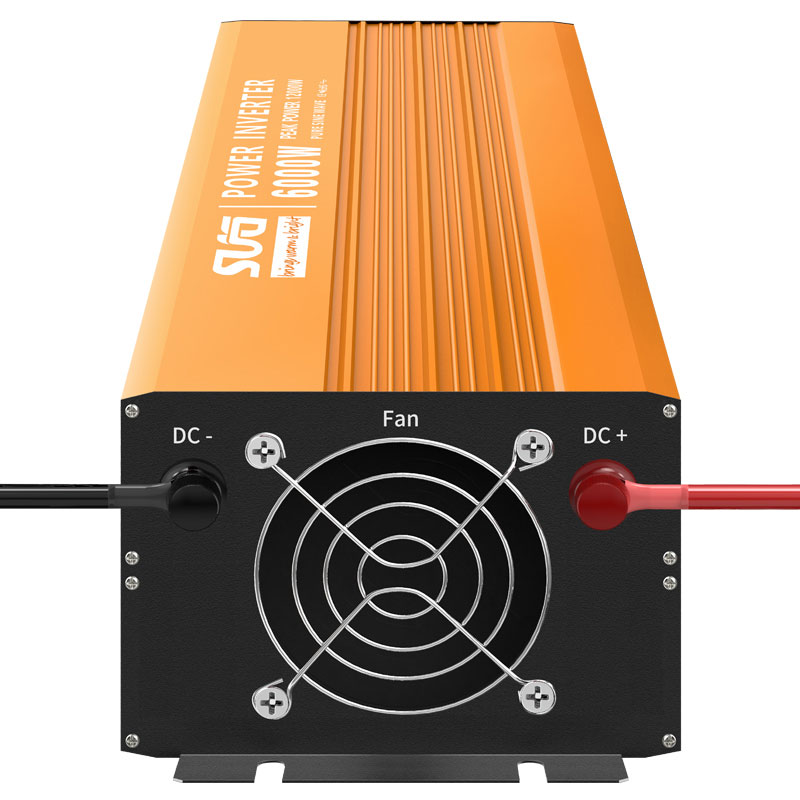

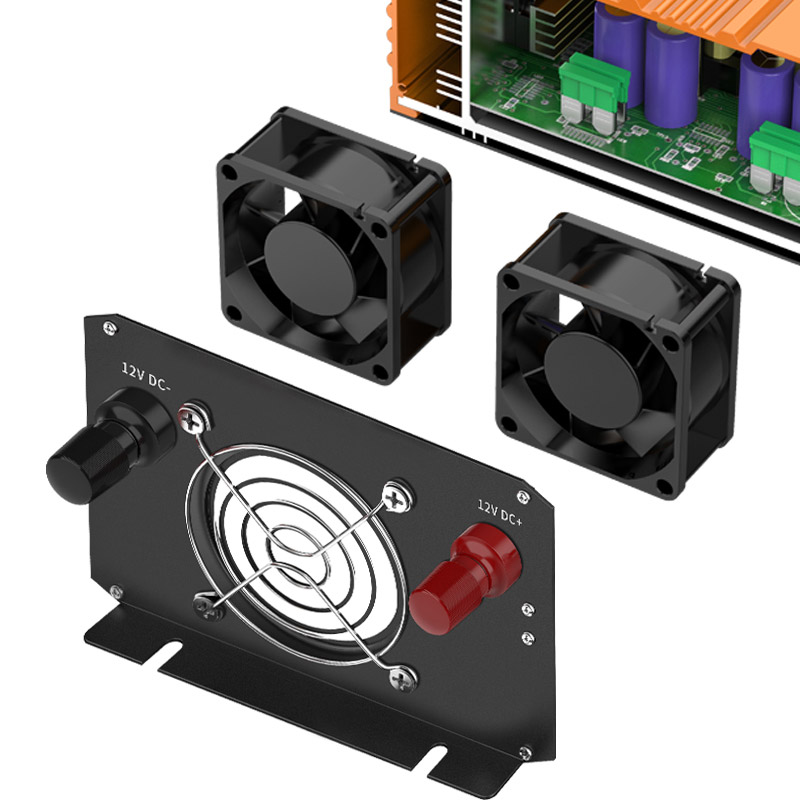

Cooling Way Intelligent Cooling Fan
Protection Battery Low Voltage & Over Voltage, Over Load, Over Temperature, Short Circuit, Reverse Polarity
Working Temperature -10ºC - +50ºC
Net Dimension 610*200*150mm
Meas./Ctn 735*308*240mm/1pcs
N.W./Unit 12kg
G.W./Ctn 14kgs
Packing Carton
Warranty 2 years
