SPWN-Wall Mounted Lifepo4 Energy Storage Battery 48V 100Ah 4.8kWh
1.it is 300w-8000w
2.pure sine wave output with DC-AC
3.2 years warranty
4.12/24/48vdc optional and 36/60/72/84/96/110/120vac customization
5.100/110/115/120/220/230vac optional
6.EU/USA/Japan/UK/Australia/Universal socket optional
7.CE/FCC/ROHS/PSE/ETL
8.sufficient power watt with original imported chip,IGBT,MOSFET
9.accept OEM/ODM
Specification:
| Model | SGPE1500A-121 | SGPE1500A-122 | SGPE1500A-241 | SGPE1500A-242 |
SGPE1500A-481 |
SGPE1500A-482 |
| Rated Power | 1500W | |||||
| Surge Power | 3000W(few seconds) | |||||
| Input Voltage | 12VDC | 24VDC | 48VDC | |||
| Output Voltage | 110VAC±5% | 220VAC±5% | 110VAC±5% | 220VAC±5% | 110VAC±5% | 220VAC±5% |
| USB Port | 5V2A | |||||
| Frequency | 50Hz±3 or 60Hz±3 | |||||
| Output Waveform | Pure Sine Wave | |||||
| Soft Start | YES | |||||
| AC Regulation | THD<3%(Linear Load) | |||||
| Output Efficiency | 94% MAX | |||||
| No Load Current | 0.6A | 0.3A | 0.1A | |||
| DC Voltage Range | 10-15.5V | 20-31V | 40-62V | |||
| Low Voltage Alarm | 10.5±0.5V | 21±0.5V | 42±0.5V | |||
| Low Voltage Shut Down | 10±0.5V | 20±0.5V | 40±0.5V | |||
| Low Voltage Recovery | 13±0.5V | 26±0.5V | 52±0.5V | |||
| Over Voltage Shut Down | 15.5±0.5V | 31±0.5V | 62±0.5V | |||
| Over Voltage Recovery | 14.8±0.5V | 29.6±0.5V | 59.2±0.5V | |||

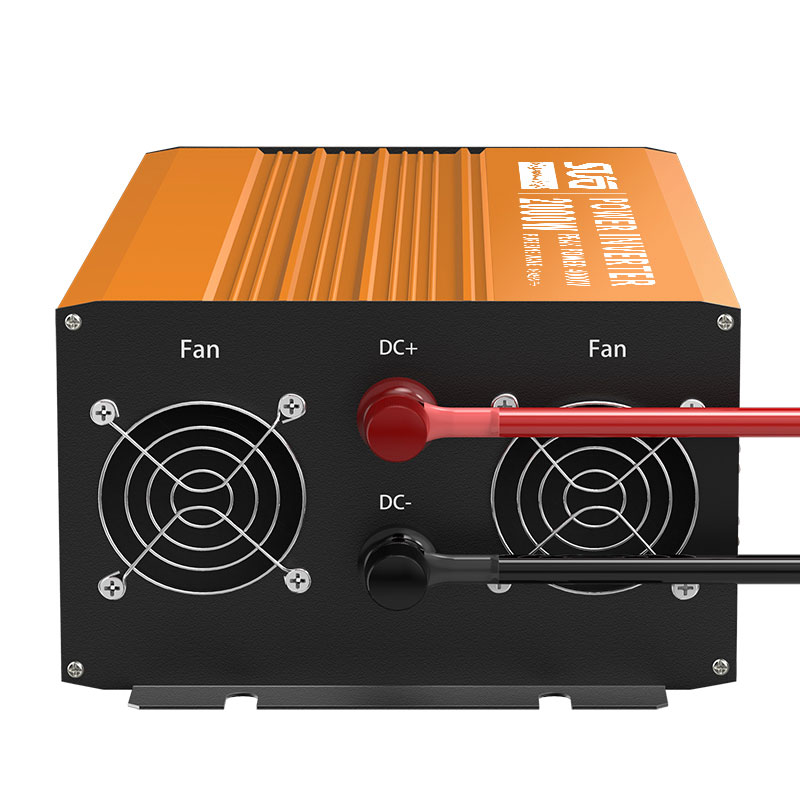

| Cooling Way | Intelligent Cooling Fan | |||||
| Protection | Battery Low Voltage & Over Voltage, Over Load, Over Temperature, Short Circuit, Reverse Polarity | |||||
| Working Temperature | -10ºC - +50ºC | |||||
| Net Dimension | 278*178*105mm | |||||
| Meas./Ctn | 535*470*407mm/6pcs | |||||
| N.W./Unit | 3kg | |||||
| G.W./Ctn | 21kgs | |||||
| Packing | Carton | |||||
| Warranty | 2 years | |||||
