عربي SPW-B 48V/51.2V 100Ah Power Wall Lithium Energy Storage Battery
• Intelligent protection
• Compatible with many battery type
• Two/Three stage charge charging

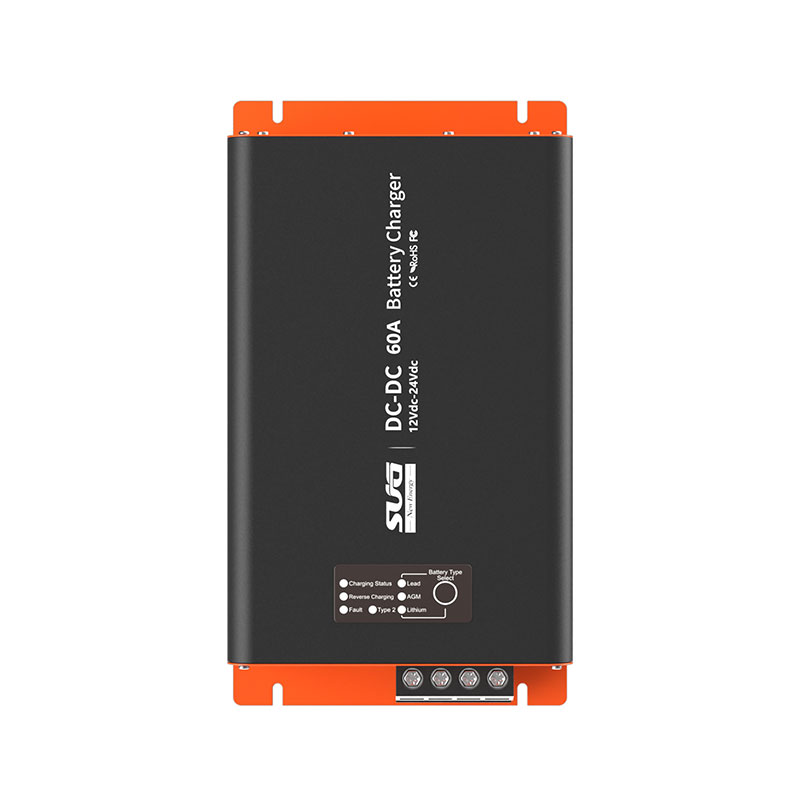

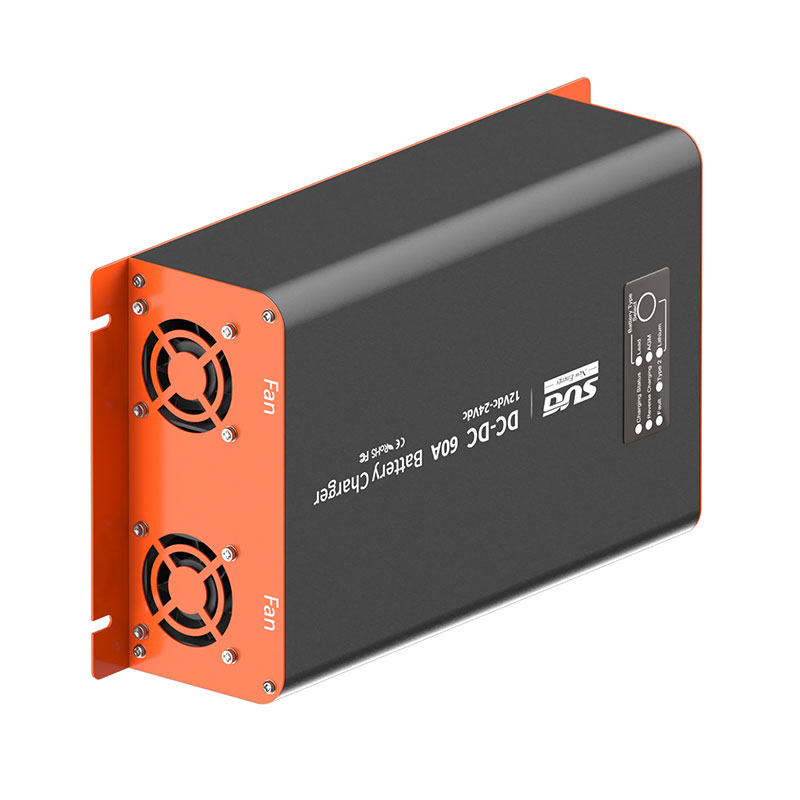

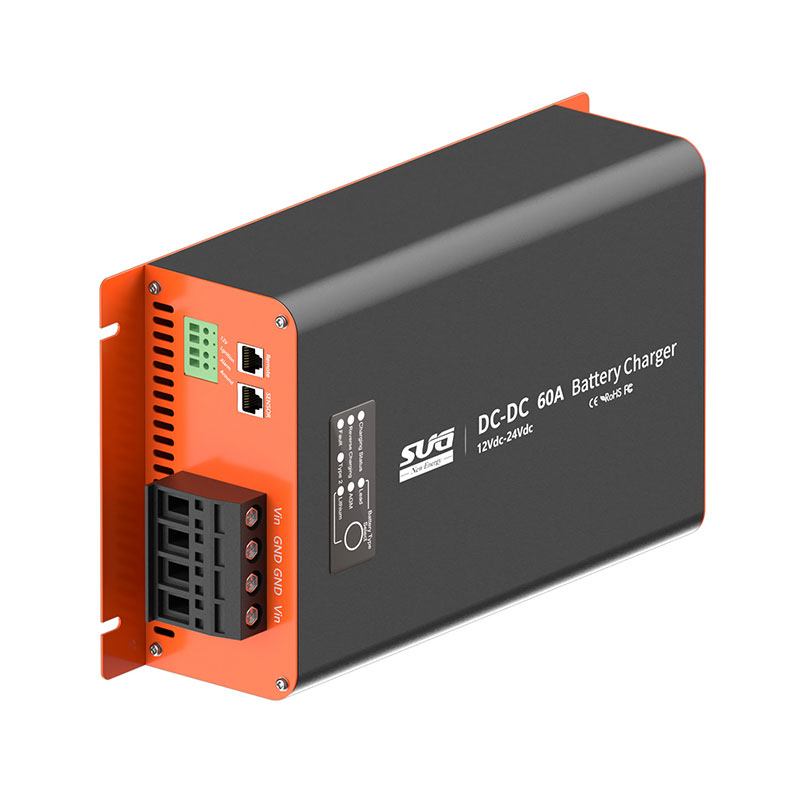

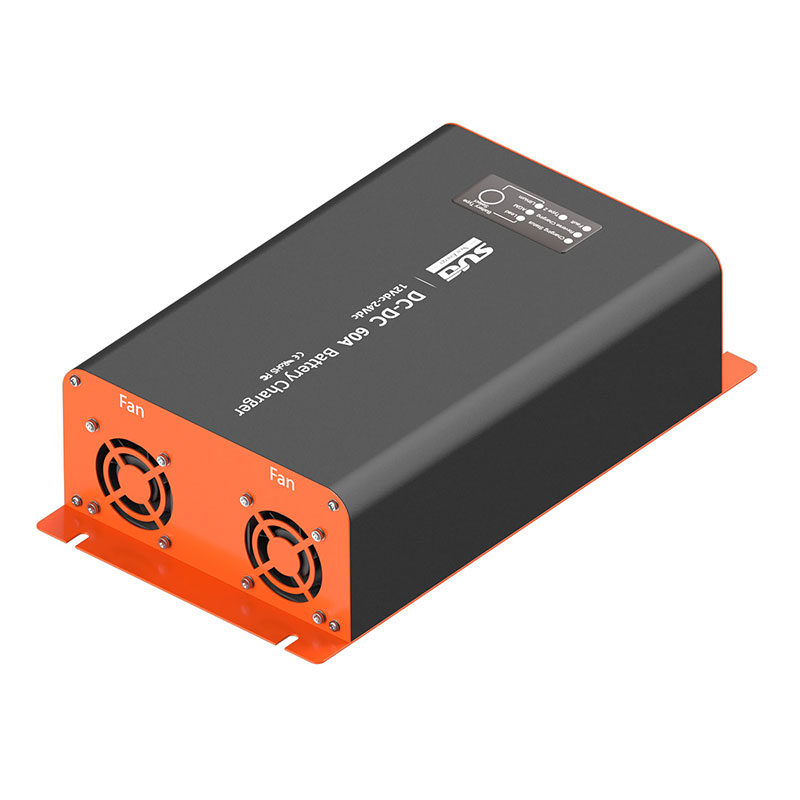

SDC DC-DC charger, capable of maintaining auxiliary battery system charging throughout the journey. DC-DC battery charger is designed specifically for dual battery systems, ensuring reliable performance The auxiliary battery system operates at peak efficiency for a longer period of time when disconnected from the power grid. When the engine is running, the DC-DC charger will safely charges the auxiliary battery pack. Supplements for RVs, ships, or any other off grid vehicles.
①Multi-chemistry battery types ( flooded, gel, AGM, and lithium)
②3-stage charging (bulk, absorption , and float)
③Smart protection features ( battery lsolation, over-voltage safety, overheat protection, and short circuit protection)
④Overcomes voltage drop caused by long cable runs
⑤Able to charge an auxiliary battery to 100% state of charge
⑥Increases run time of loads, such as fridges and lights
⑦Prolongs batter y life
| Model | SDC1224-60A |
| Nominal input Voltage | 12V |
| Input voltage range | 8V~16V |
| Charging current | 60A |
| Charging voltage | 26.4V~29.4V |
| Output | 1540W |
| Efficiency up to | >0.9 |
| Idle power Consumption | <0.4A |
| Ambient humidity | ≤95%Non-Condensing |
| Residual rupple of Output voltage at Rated current |
<50 mVeff |
| Ambient temperature For operation |
-20°C~50°C |
| Net dimension (L×W×H) | 270*130*73mm |
| Outer box size (L×W×H) | 273*133*76mm |
| NW. (kg) | 1.8 |
| GW. (kg) | 2.3 |
| Certifcation | CE FCC ROHS |
| Protective function Specifcations | |
| Protections | High-voltage,low-voltage,high-temperature,short-circuit |
| Low voltage cut of | 8V |
| low voltage restart | 10V |
| High-voltage shutdown | 16V |
| High voltage restart | 15.5V |
