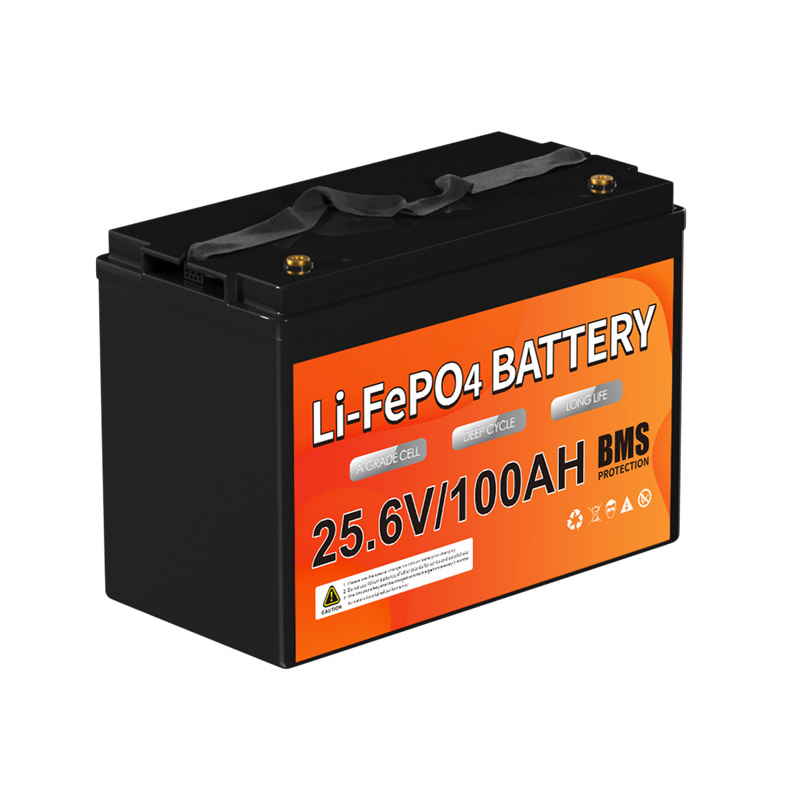

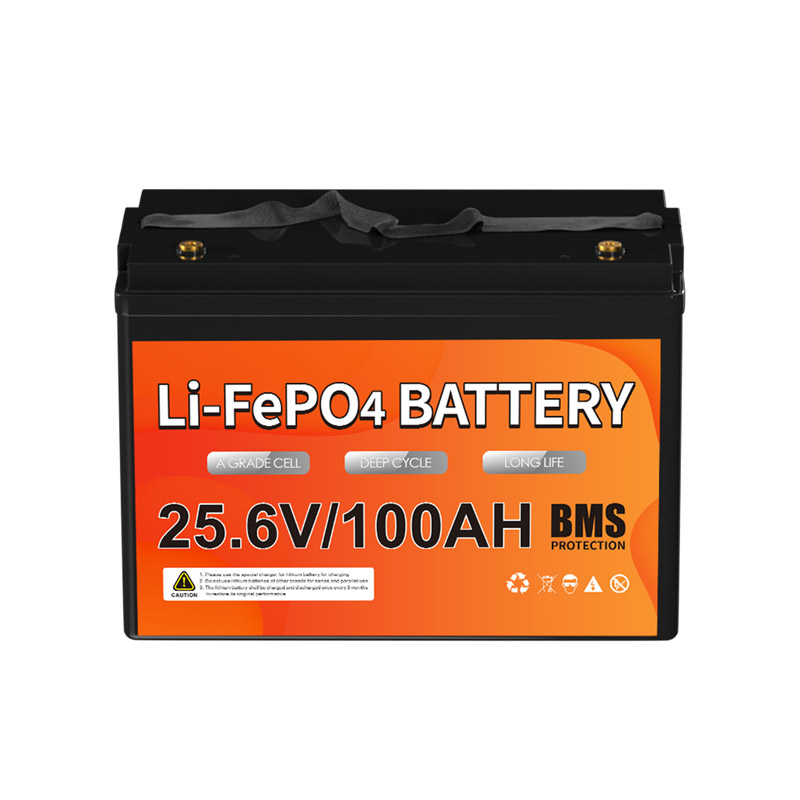

SBT-25.6V 100Ah Plastic LFP Energy Storage Battery

SBT-25.6V 100Ah Plastic LFP Energy Storage Battery

BMS protection

Small volume/light weight

Home energy storage

Intelligent communication/Optional

Send a Quote

Product Specifications

Product Introduction

SBT Plastic LFP Energy Storage Battery use long working life LiFeP04 battery, and high performance BMs to protect andmanage the battery system, it has wider usage and longer life than traditional battery.

Product features

1. LiFePo4 cell class A
2. 50A/100A/150A/200A BMS for charge/di scharge
3. 6000 cycle times@DoD80%
4. IP67 design
5. BT i s optional
6. With series/parallel function
7. LCD di splay i s optional

Application Area

※ Energy storage system, control system, alarm system, power system, database

※ Emergency lighting system, emergency power supply, UPS

※ Telecommunications, communication, and fire protection

Product Parameters

Model	SBT-25.6200
Standard voltage	25.6V
Standard capacity	100Ah
Standard energy	2.56kWh
Working voltage	20-29.2V
Standard charging current	50A
Standard discharging current	100A
Suggested DOD	80%
Cycle life	>6000 cycles
IP Rating	Ip67
Operating temperature for discharge	-20℃-60℃
Operating temperature for charge	0℃-45℃
Communication	BT optional
Display	LCD display optional
Warranty	5 years
Certificate	UN38.3/MSDS/CE/ROHS/FCC
NW. (kg)	17.6
GW. (kg)	22
Product size (mm)	532207215
Package size(mm)	600275295
