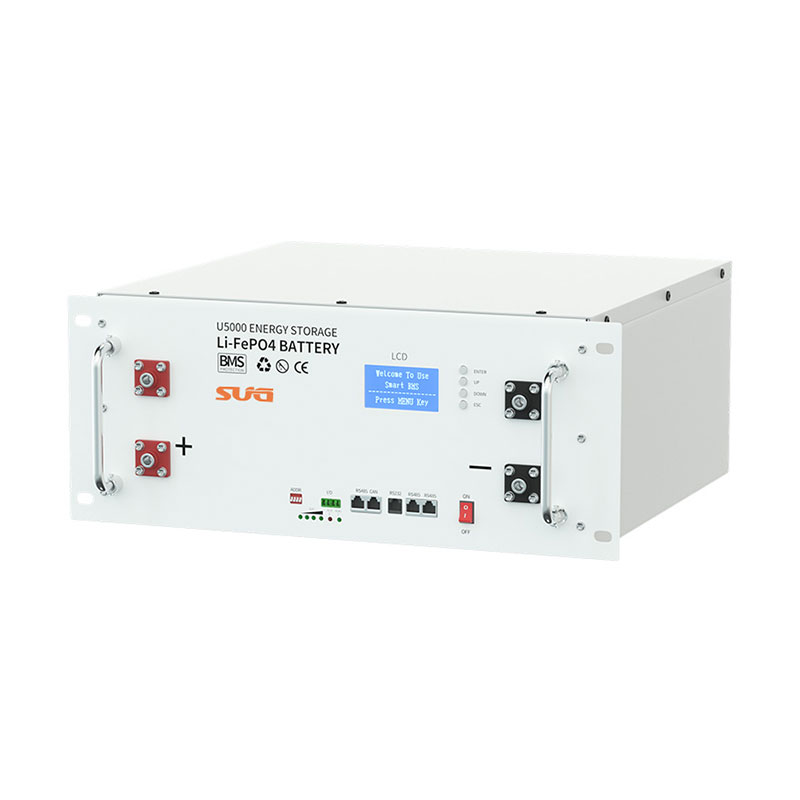

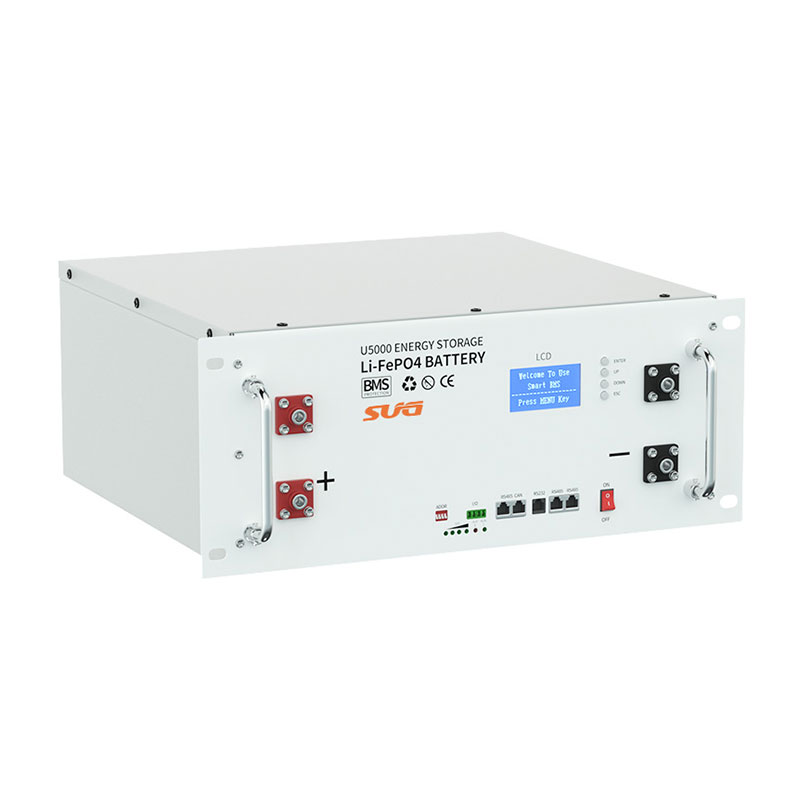

50ah 48v Lifepo4 Battery Solar Battery 2.4kwh

50ah 48v Lifepo4 Battery Solar Battery 2.4kwh

1.rack series with 2.4kwh capacity 48v 15s 2.with BMS/RS485/CAN/parallel and WIFI/bluetooth optional 3.max parallel 16pcs to 38.4kwh 4.0.5c charging current and 1c discharging current 5.support most hybrid inverter,like Growatt,Deye,Luxpower,Voltronic... 6.5 years warranty 7.with CE,ROHS,FCC,MSDS,UN38.3 and pass ISO 8.support OEM/ODM

0577-62967308

Products Features:

1.rack series with 2.4kwh capacity 48v 15s

2.with BMS/RS485/CAN/parallel and WIFI/bluetooth optional

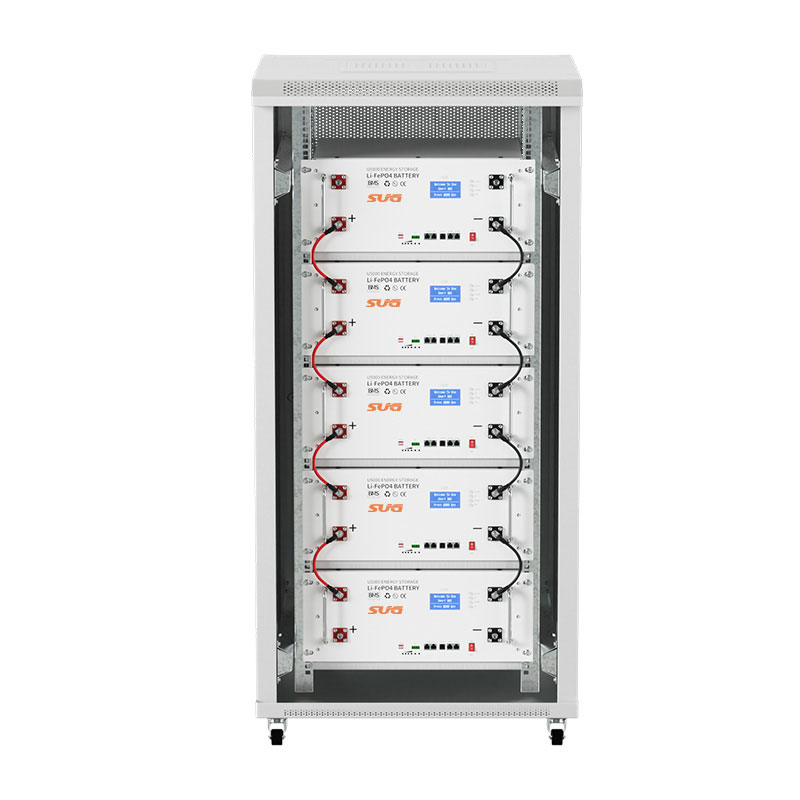

3.max parallel 16pcs to 38.4kwh

4.0.5c charging current and 1c discharging current

5.support most hybrid inverter,like Growatt,Deye,Luxpower,Voltronic...

6.5 years warranty

7.with CE,ROHS,FCC,MSDS,UN38.3 and pass ISO

8.support OEM/ODM

Specification:

Model SBS-48v50ah

SBS-51.2v50ah

Capacity 2.4kwh 2.56kwh
Standard Voltage 48v 51.2v
Working Voltage 40.5-54v 43.2-57.6v
Charging Current 25a
Discharging Current 50a
Suggested DOD 80%-90%
Installation rack or cabinet
IP rating IP21
Max Parallel 16pcs
Warranty 5 years
Communication CAN/RS485(WIFI/Bluetooth/4G optional)
Product Size(mm) 410*484*122mm
Packing Size(mm) 510*567*165mm
N.W./unit(kg) 25kg 27kg
G.W./unit(kg) 27kg 30kg



File Name Description Size Download
SBS 48v manual 0.98MB
SBS catalogue 7.07MB
CE 0.33MB
FCC 0.33MB
ROHS 0.3MB
0MB
