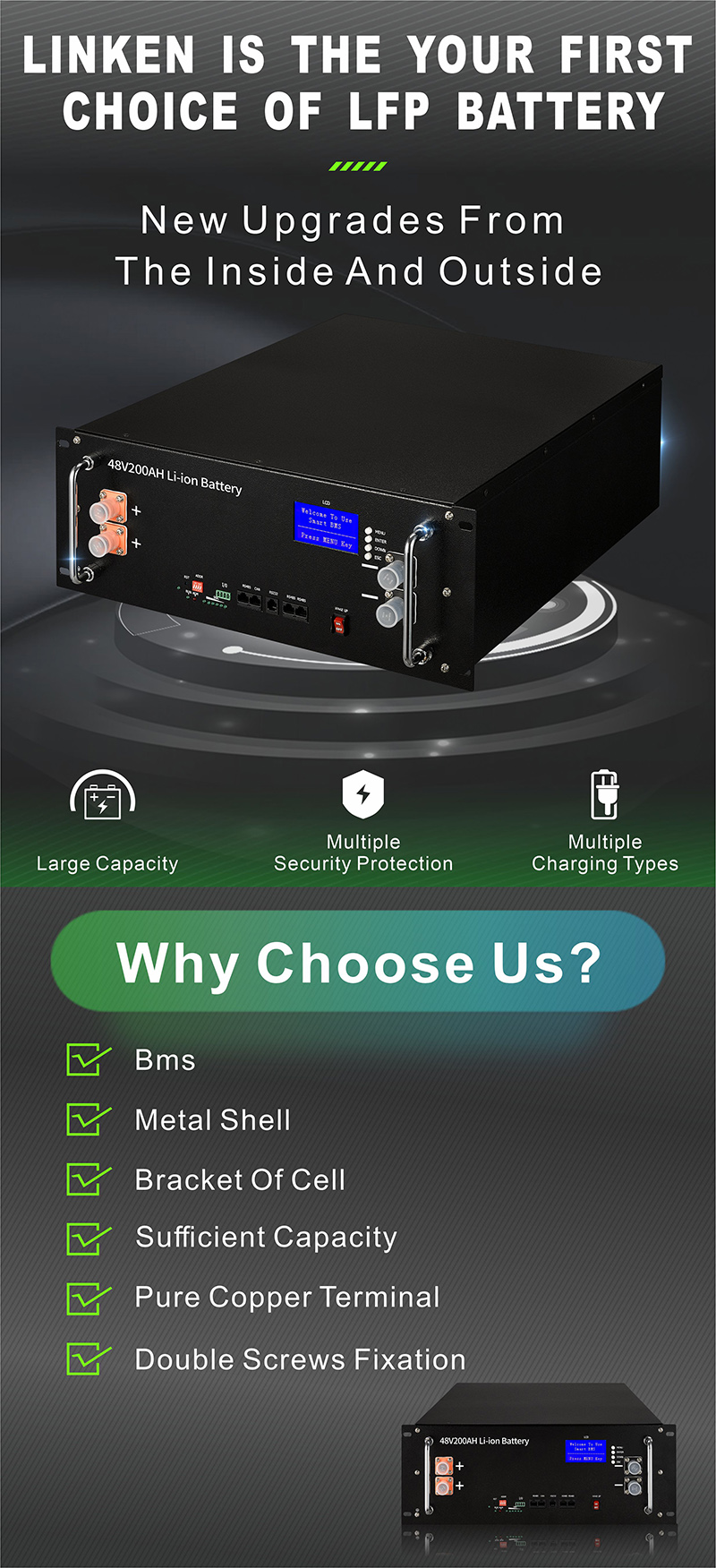

10kwh 51.2v 200ah Solar Lithium Battery For ESS

10kwh 51.2v 200ah Solar Lithium Battery For ESS

1.rack series with 10.24kwh capacity 51.2v 16s 2.with LCD/BMS/RS485/CAN/parallel and WIFI/bluetooth optional 3.max parallel 16pcs to 160kwh 4.0.5c charging current and 0.5c discharging current 5.support most hybrid inverter,like Growatt,Deye,Luxpower,Voltronic... 6.5 years warranty 7.with CE,ROHS,FCC,MSDS,UN38.3 and pass ISO 8.support OEM/ODM

0577-62967308

Products Features:

1.rack series with 10.24kwh capacity 51.2v 16s

2.with LCD/BMS/RS485/CAN/parallel and WIFI/bluetooth optional

3.max parallel 16pcs to 160kwh

4.0.5c charging current and 0.5c discharging current

5.support most hybrid inverter,like Growatt,Deye,Luxpower,Voltronic...

6.5 years warranty

7.with CE,ROHS,FCC,MSDS,UN38.3 and pass ISO

8.support OEM/ODM

Specification:

Model SBS-48v200ah

SBS-51.2v200ah

Capacity 9.6kwh 10.24kwh
Standard Voltage 48v 51.2v
Working Voltage 40.5-54v 43.2-57.6v
Charging Current 100a
Discharging Current 100a
Suggested DOD 80%-90%
Installation rack or cabinet
IP rating IP21
Max Parallel 16pcs
Warranty 5 years
Communication CAN/RS485(WIFI/Bluetooth/4G optional)
Product Size(mm) 590*484*178mm
Packing Size(mm) 730*544*270mm
N.W./unit(kg) 65kg 70kg
G.W./unit(kg) 70kg 75kg



File Name Description Size Download
SBS 51.2v manual 0.98MB
SBS catalogue 7.07MB
CE 0.33MB
FCC 0.33MB
ROHS 0.3MB
0MB
