Product Specifications

Product Introduction

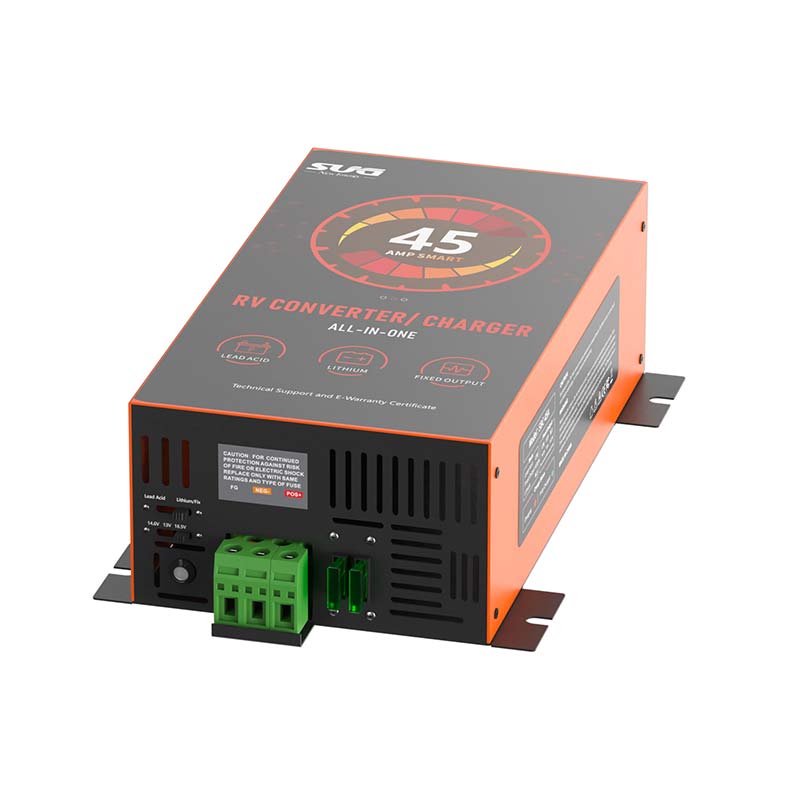

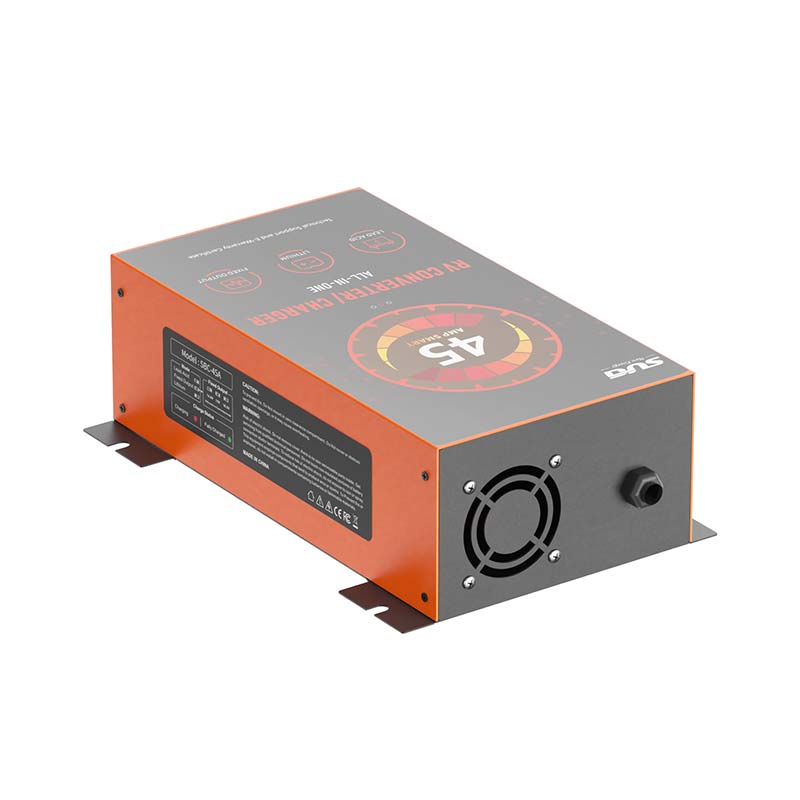

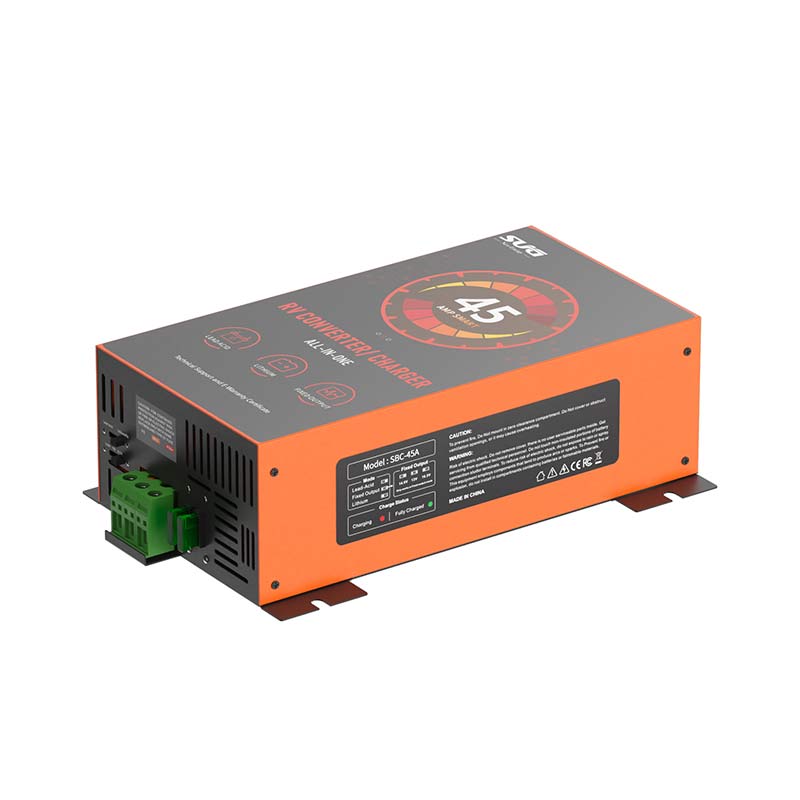

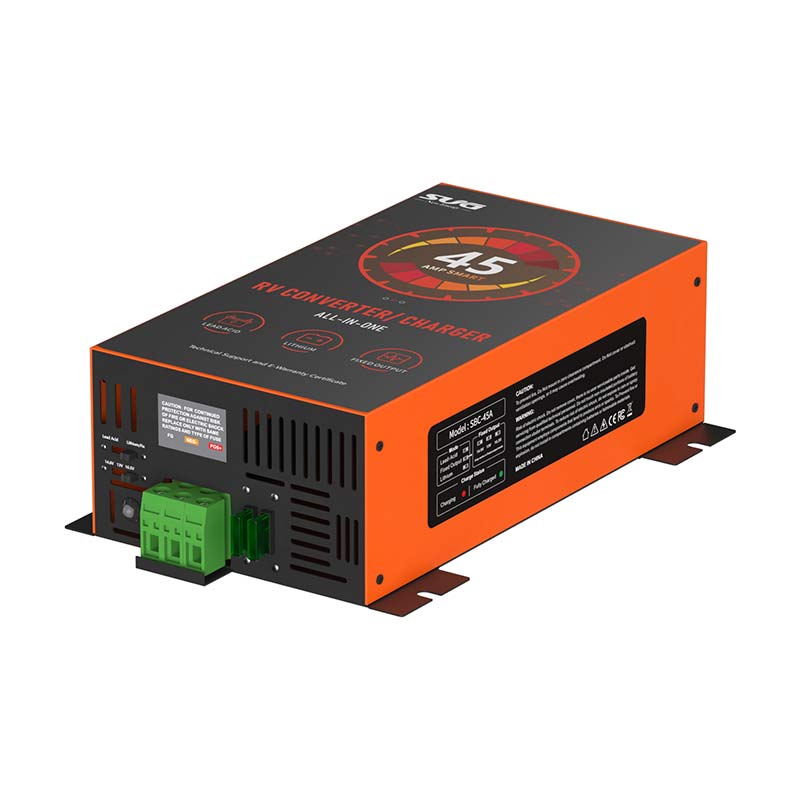

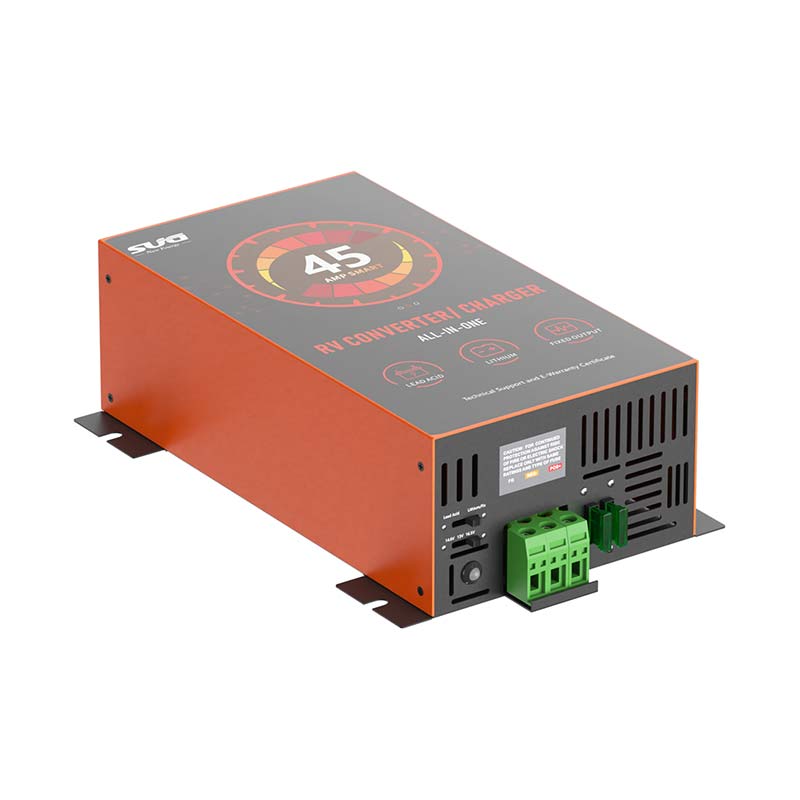

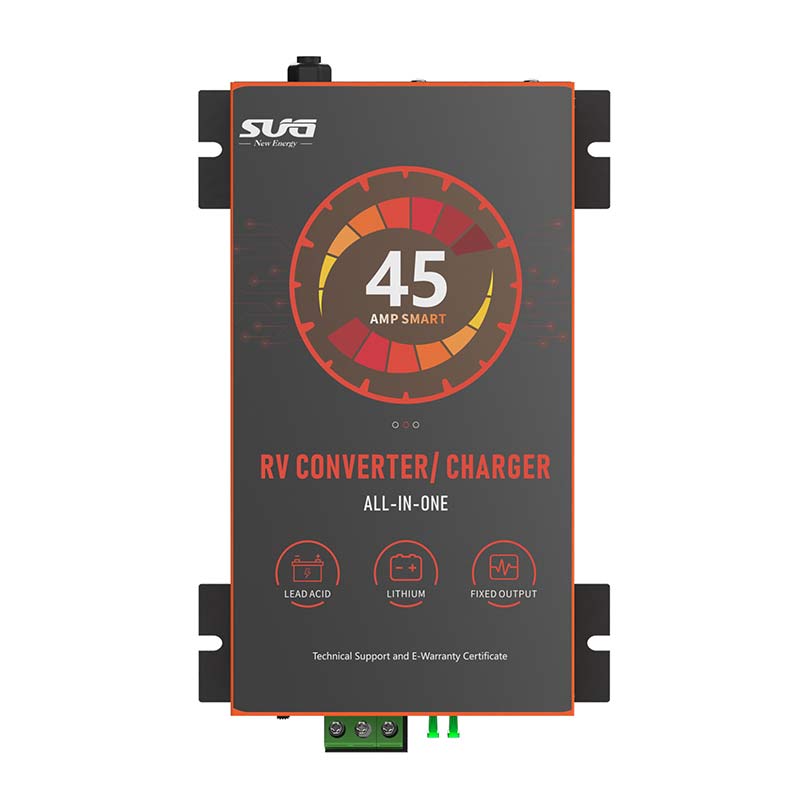

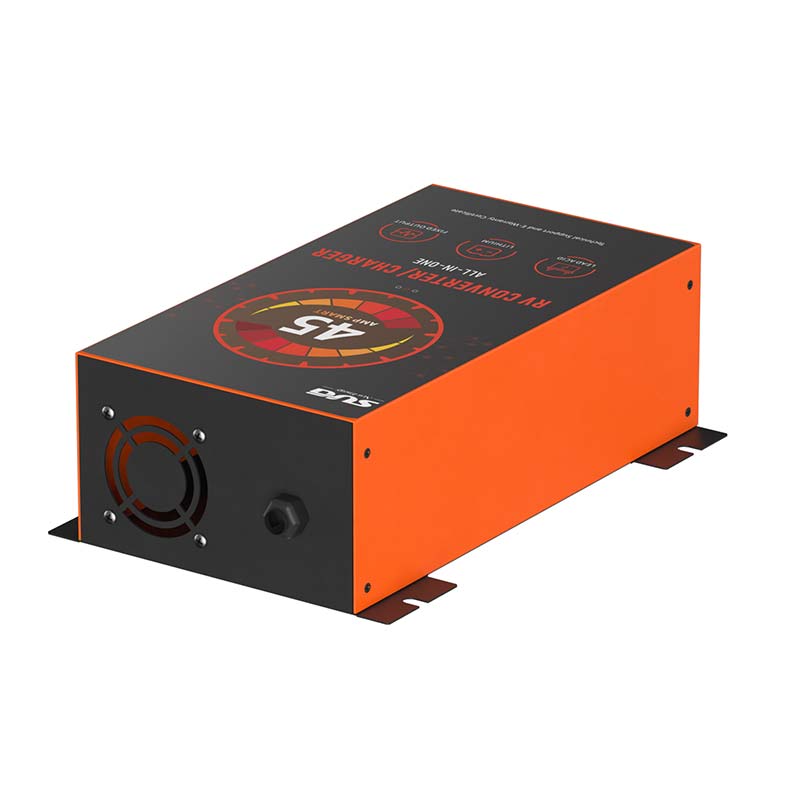

SBC AC to DC RV Converter 45A is an efficient and intelligent multifunctional power management device designed specifically for RVs and campers. It converts externally connected alternating current (AC) to direct current (DC) to power onboard devices, while intelligently charging and managing RV batteries.

Product features

①Multiple battery chemistries (flooded, gel, AGM, and lithium)

②Intelligent protection features (battery isolation, overvoltage protection, overtemperature

③protection, and short-circuit protection)

④Overcome voltage drops caused by long cable runs

⑤Capable of charging auxiliary batteries to 100%

⑥Extends runtime for loads like refrigerators and lights

⑦Extends battery life

Product Parameters

Model	SBC-35A	SBC-45A	SBC-55A	SBC-65A	SBC-80A	SBC-100A	SBC-125A
DC Output
Output Current	Max. 35A	Max. 45A	Max. 55A	Max. 65A	Max. 80A	Max. 100A	Max. 125A
Charging Voltage	14.6Vdc
Chargin Way	3 steps for lead acid mode / 2 steps for Lithium mode
Fix Output Voltage	13V/14.6V/16.5V adjustable
Max DC Output Power	510W	655W	798W	942.5W	1160W	1450W	1812.5W
AC Input
Rated Input Voltage	120Vac
Input Voltage Range	90-120Vac
Input Frequency	60Hz(47Hz-63Hz)
Environment
Working Temperature&Humidity	-10-60℃,20%-90%RH
Storage Temperature&Humidity	-20-85℃,10%-95%RH
Fan Cooling	Cooling fan starts when temperature>45℃,system stops working when temperature>95℃(+10%)
LED
Red Colour	Battery charging / runs loads in Fix-voltage mode
Green Colour	Battery fully charged / no load in Fix-voltage mode
Basic parameters
Product size (mm)	26518293	26518293	26518293	27420794	27420794	27420794	27420794
Package size (mm)	320227160	320227160	320227160	320260160	320260160	320260160	320260160
NW/PCS (kg)	2.1	2.2	2.3	2.7	2.7	3.3	3.3
GW./Ctm (kg)	2.4	2.5	2.6	3	3	3.6	3.7
