PWM Solar Charge Controller 10A 12/24V Automatic

PWM Solar Charge Controller 10A 12/24V Automatic

Model: PWM-SD-10A Voltage: 12 or 24V Max. Current: 10A

0577-62967308

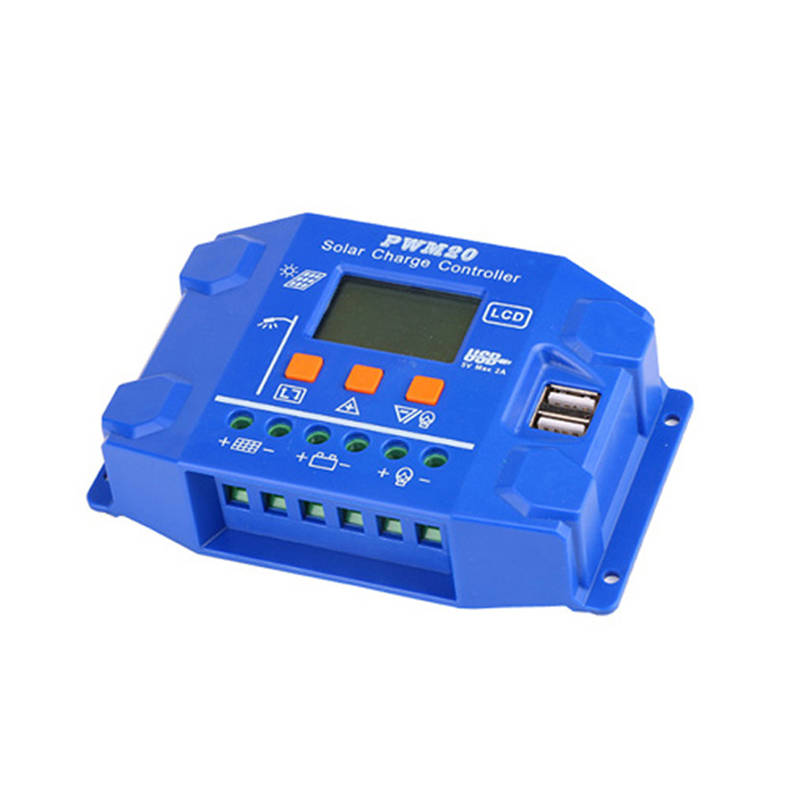

PWM Solar Charge Controller 10A 12/24V Automatic

It uses digital output of microprocessor to control analog circuit. Constant current, constant voltage and floating charging are adopted. The PWM solar controller solves the problem that the battery is not fully charged and the life of the battery is short.

Application Area:

It can be used in small-user solar power system for home, street light, water pump, solar water heater, etc, which controls the charging of solar panels by batteries and the batteries supply power to inverters and loads.

Products Specification:

 Model SD-10/20/30/40 SD-20/30/40-48 SD-50/60 SD-50/60
 Max Solar Current 10/20/30/40A 20/30/40A 50/60A 50/60A
System Voltge 12V/24V Automatic Recognition 48V 12V/24V Automatic Recognition 48V
Fast Voltage 14.0/28.0V (25ºC) 56V (25ºC) 14.0/28.0V (25ºC) 56V (25ºC)
 Boost Voltage 14.0~15.0V/28.0~30.0V (25ºC) 56~60V (25ºC) 14.0~15.0V/28.0~30.0V (25ºC) 56~60V (25ºC)
Equalization Voltage 14.0~15.5V/28.0~31.0V (25ºC) 56~62V (25ºC)(Liquid) 14.0~15.5V/28.0~31.0V (25ºC) 56~62V (25ºC)(Liquid)
Float Voltage 13.0~14.5V/26.0~29.0V (25ºC) 52~58V (25ºC) 13.0~14.5V/26.0~29.0V (25ºC) 52~58V (25ºC)
 Over Voltage Protection Voltage 16.5/33.0V 66.0V 16.5/33.0V 66.0V
Load Disconnect Voltage 11.2-11.8V/22.4-23.6V 44-50V 11.2-11.8V/22.4-23.6V 44-50V
 Load Reconnect Voltage 12.5V/24.0V 47.2-53.2V 12.5V/24.0V 47.2-53.2V
Battery Type Lead Acid Battery
 Temperature Compensation 4.17mV/K Per Cell (Boost, Equalization),3.33mV/K Per Cell (Float)
Max Solar Voltage 55V 100V 55V 100V
Max Battery Boltage 40V 64V 40V 64V
Max.Wire size 25mm
 Own Consumption 13.8mA
 Ambient Temperature -10~+60ºC
