SPWN-Wall Mounted Lifepo4 Energy Storage Battery 48V 100Ah 4.8kWh

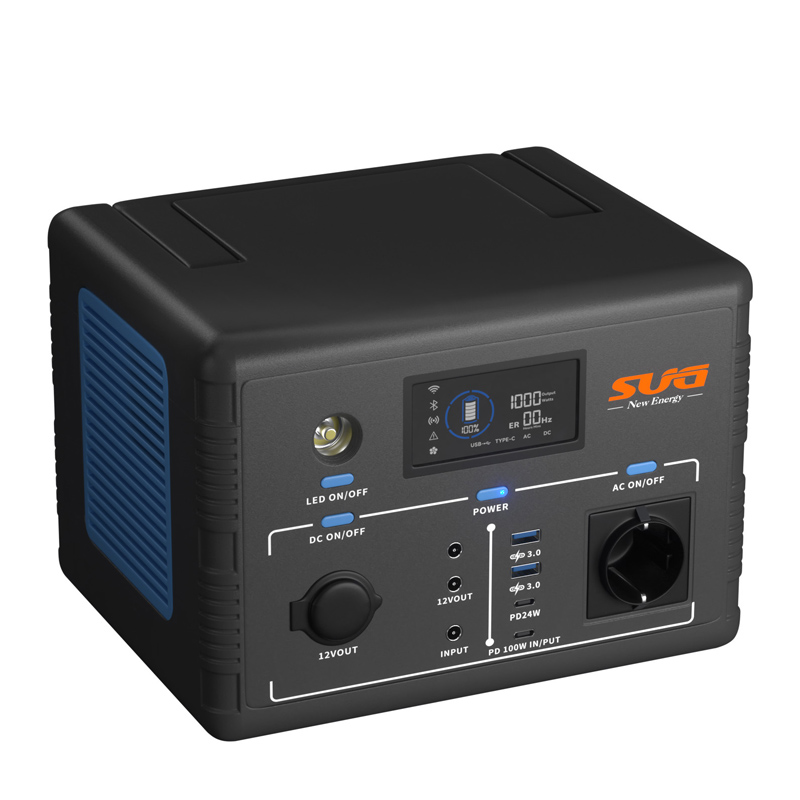

1.Large LED screen, clear display
2. High brightness LED lighting
3. 500W pure sine wave output, 500w continuous power and 1000w peak power AC outputs meets the deamnds of many loads.
4. High quality and safe to use

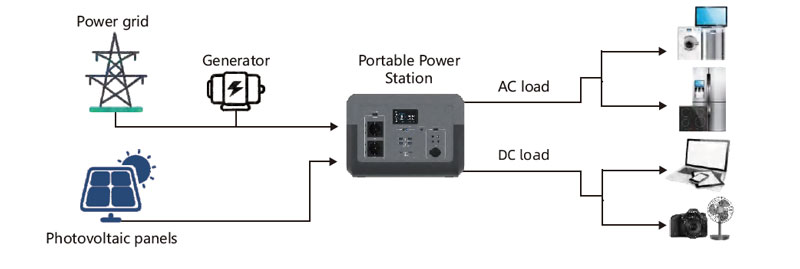

5. Widely application fields, such as RV, outdoor BBQ, performance and so on
6. Over-voltage, low voltage, overload, over-temperature, short-circuit protection
| Model | SIPS-500 | ||||
| Inverter AC output | Ouput Rated Power | 500W | |||
| Ouput Peak Power | 1000W | ||||
| Waveform | Pure sine wave | ||||
| Frequency | 50HZ±3 or 60HZ±3 | ||||
| Ouput Voltage | 100V-120VAC±5% | 220V-240VAC±5% | |||
| Output Outlet | Universal（Japan,USA,UK,Europe, Austrial optional) | ||||
| Soft start | yes | ||||
| THD | THD＜3% | ||||
| Protect | Over-voltage, low voltage, overload, over-temperature, short-circuit | ||||
| DC Output | USB -A | 5V 2.4A Fast charging *1 | |||
| USB- B | QC3.0 Super-fast charging *1 | ||||
| Type-c | PD Standard, input/output support 60W：5V3A,9V3A,12V3A,15V3A,20V3A | ||||
| DC Socket(6530) | 12VDC*2 /10A output | ||||
| Cigarette output | DC12V/10A | ||||
| DC Input | Solar Charger（6530） | PWM charger max 15A | |||
| Grid Charger （6530） | Power Adapter 6A | ||||
| AC Input | Grid Input | With UPS function | |||
| LED light | LED Lighting 8W | ||||
| Switch | DC12V output switch，USB switch，Inverter switch，LED light switch（press 3S to on/off） | ||||
| Display | Display type | LED Intelligent display | |||
| Display content | Battery capacity, battery voltage, output voltage, output waveform, frequency, AC load percent, USB status, DC outpu status, LED light status, grid charger working status, solar charging status, blue tooth status | ||||
| Lithium Battery | Battery type | 18650/2.6AH LiO2 battery cell | |||
| Capacity | 538WH | ||||
| Battery Voltage Range | 12.6V-16.8V | ||||
| Min Charging Current | 5A | ||||
| Max continous Charging Current | 45A | ||||
| Max continous Discharge Current | 60A | ||||
| Max Peak Discharge Current | 120A(60S) | ||||
| Cooling Way | Intelligent Fan | ||||
| Working Temperature | （0℃+60℃） | ||||
| Storage Temperature | （-20℃ - 70℃） | ||||
| Humidity | Max 90%，Non-condensing | ||||
| Warantee | 2 Years | ||||
| Size | 220*185*144mm | ||||
