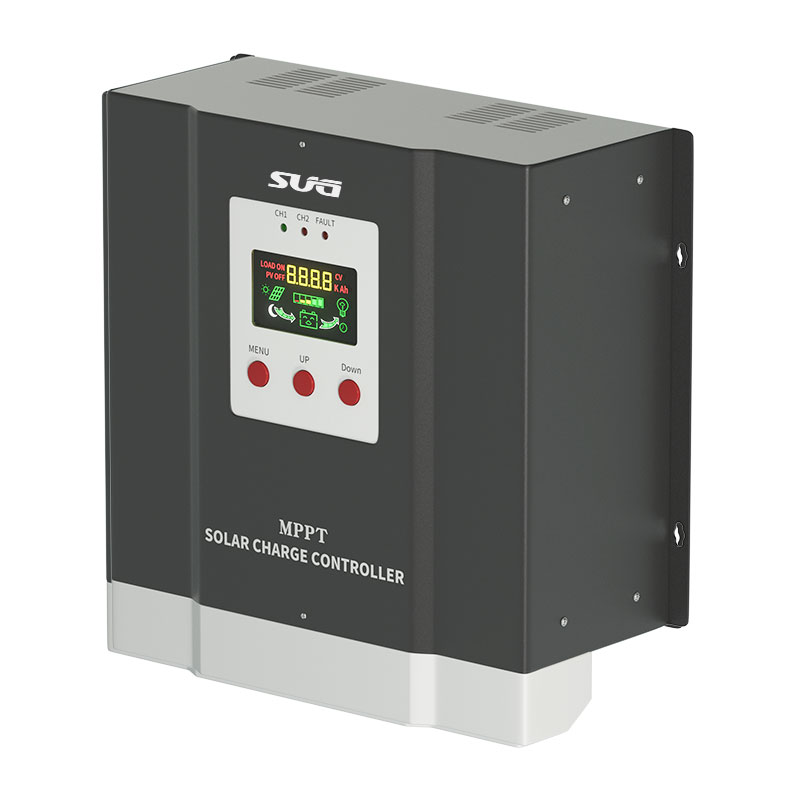

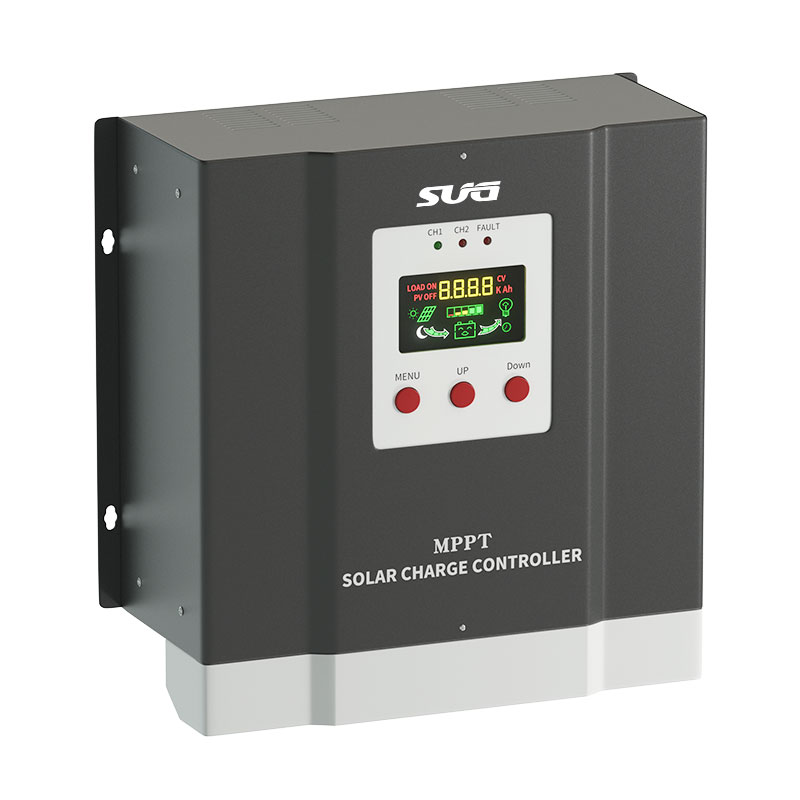

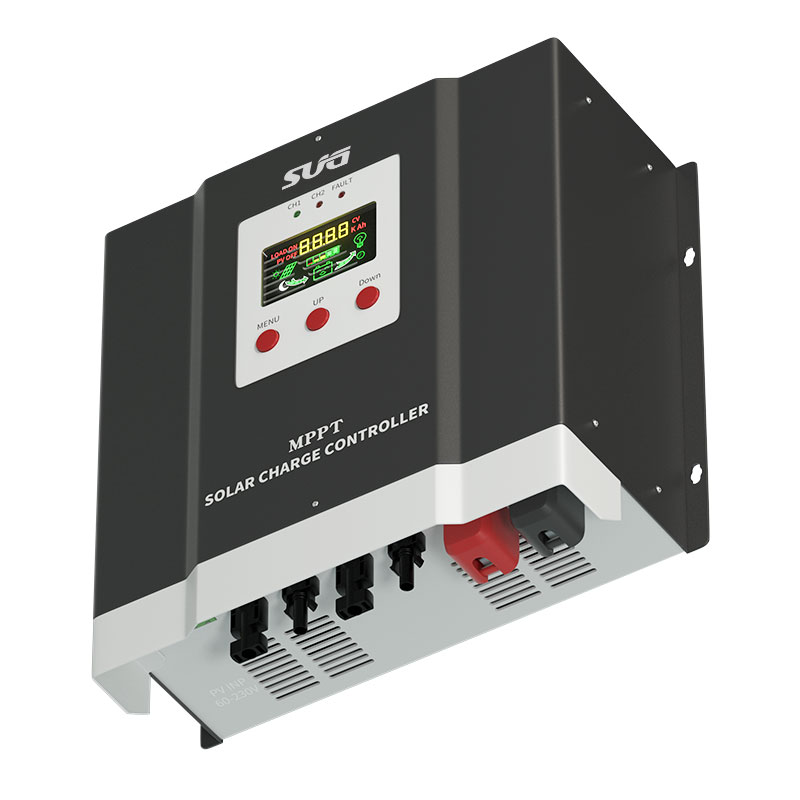

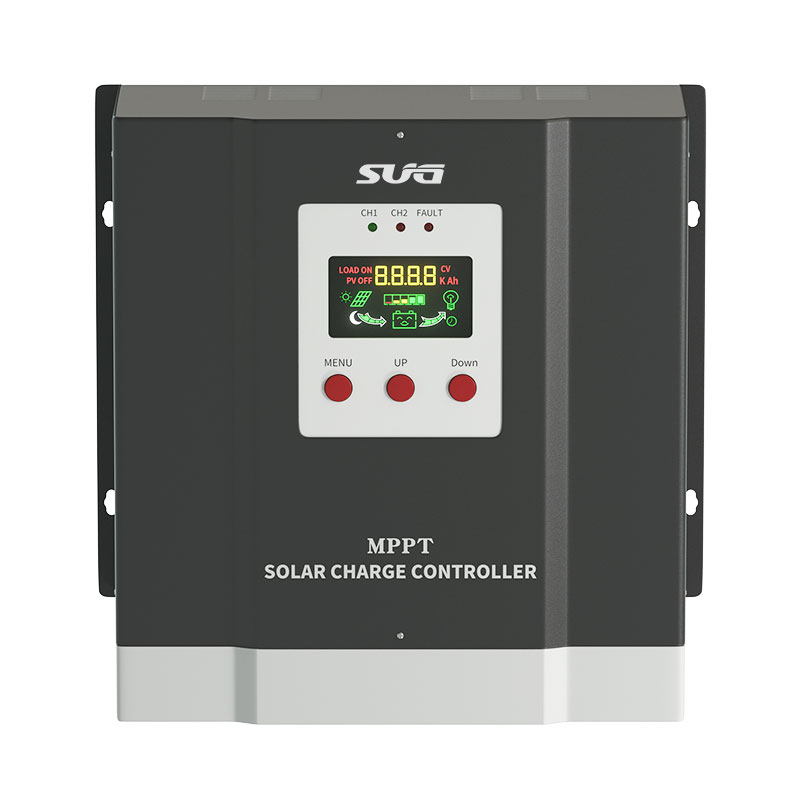

MPPT 100A MPPT Solar Charge Controller 96/240V For Lithium Battery

MPPT 100A MPPT Solar Charge Controller 96/240V For Lithium Battery

Model: MPPT-SSM-100A 96V Voltage: 96V Max Current: 100A

0577-62967308

MPPT 10A MPPT Solar Charge Controller 96/240V For Lithium Battery

Feature :

◆ Advanced MPPT tracking, 99% tracking efficiency.  Compared  with   PWM,  the  generating  efficiency increase near 20%;

◇ LCD display PV data and chart simulates power generation process;

◇ Wide PV input voltage range, convenient for system configuration;

◆ Intelligent battery management function, extend battery life;

◆ RS485 communication port optional

Products Specification:

Rated Current 50A 100A 50A 100A
Rated System Voltage 96V 96V 192V/216V/240V 384V 192V/216V/240V 384V
Max PV Input Voltage
(At the lowest ambient temperature)
300V(96V system) / 450V(192V/216V system)/500V(240V system) / 800V(384V system)
PV array Max power 5.6KW 5.6KW*2 11.2KW/12.6KW/14KW/22.4KW 11.2KW*2/12.6KW*2/14KW*2/22.4KW*2
MPPT Tracking Voltage Range 120V~240V(96V system) / 240V/270V~360V(192V/216V system)/ 300V~400V(240V system) /480V~640V(384V system)
MPPT route number 1 2 1 2
Recommended operating voltage range 120V-160V(96V system); 240V-320V(192V system); 270V-320V(216V system); 300V-350V(240V system); 480V-560V(384V system)
Battery Type Lead acid battery, deep cycle battery, gel battery etc(Battery type base on user charge specification)
Floating Voltage 110.4V/220.8V/248.4V/276V/441.6V
Charge Voltage 113.6V/227.2V/255.6V/284V/454.4V
Charging Protection Voltage 120V/240V/270V/300V/480V
Promote recovery voltage  105.6V/211.2V/237.6V/264V/422.4V
Temperature Compensation -3mV / ℃ / 2V (25℃ is base line) (Optional)
Charging Mode MPPT maximum power point tracking
Charging Method Three stages: constant current(MPPT); constant voltage; floating charge
Protection Over-voltage/under-voltage/over-temperature/PV&Battery anti-reverse protection
Conversion Efficiency >98%
MPPT Tracking Efficiency >99%
Machine Size(L*W*Hmm) 315*250*108 460*330*140 530*410*162
Package Size(L*W*Hmm) 365*310*164(1PC) / 376*321*343(2PCS) 509*405*215 598*487*239
N.W(kg) 4.5(1PC) 5.6(1PC) 13.5 15 22.6 26.5
G.W.(kg) 5.2(1PC) 6.3(1PC) 15 16.5 24.6 28.5
System Parameter
Display LCD
Thermal Method Cooling fan in intelligent control
Type Of Mechanical Protection IP20
Operating Temperature -15℃~+50℃
Storage  Temperature -20℃~+60℃
Elevation <5000m(Dreating above 2000m)
Humidity 5%~95%(No condensation)
Communication  RS232/RS485(Optional)
File Name Description Size Download
Manual for MPPT Solar Controller 1.02MB
