How do inverter waveform differences affect the life of electrical equipment?

With the rapid development of industrial automation and new energy applications, inverters have become core power supply equipment for thousands of electrical devices—from factory motors and precision instruments to household appliances and renewable energy systems. However, a frequently overlooked detail—the difference in inverter output waveforms—is quietly affecting the service life of electrical equipment. Industry data shows that over 30% of unexpected electrical equipment failures are related to improper matching of inverter waveforms, causing billions of yuan in economic losses annually.

What Are the Main Types of Inverter Waveforms?

Inverters convert direct current (DC) to alternating current (AC), and their output waveforms are mainly divided into three categories, each with distinct characteristics that directly impact equipment operation:

• Pure Sine Wave Inverters: Their output waveform is consistent with the utility grid’s smooth sine curve, with low harmonic content (usually less than 3%). This waveform is closest to the power supply environment electrical equipment is designed for, such as precision PLCs, medical devices, and variable-frequency motors.

• Modified Sine Wave Inverters: Also known as "quasi-sine wave" inverters, their waveform is a stepped approximation of a sine wave, with harmonic content ranging from 8% to 15%. They are widely used in low-demand scenarios like small household appliances (e.g., fans, lamps) but are not suitable for sensitive equipment.

• Square Wave Inverters: The simplest waveform, with sharp voltage transitions and high harmonic content (over 20%). Currently, they are mostly used in basic devices like emergency lights and low-power motors, and are gradually being phased out in industrial scenarios.

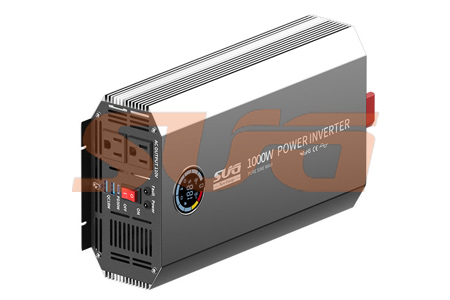

Pure Sine Wave Inverters

How Do Waveform Differences Impact Equipment Life?

1. Pure Sine Wave

Since pure sine wave inverters have minimal harmonic distortion, they avoid additional electrical stress on equipment components. For example, in a car parts manufacturing plant in Guangdong, after replacing modified sine wave inverters with pure sine wave models for 50 sets of servo motors, the average failure interval of the motors increased from 18 months to 36 months, and the replacement frequency of capacitors and bearings decreased by 60%. Engineers explained that the smooth waveform reduces eddy current loss in motor iron cores, preventing overheating and aging of insulation materials.

2. Modified Sine Wave

Although modified sine wave inverters are cost-effective, their stepped waveform can cause "voltage spikes" during switching. A case study from a semiconductor factory showed that using modified sine wave inverters to power temperature sensors led to frequent false alarms and a 40% reduction in sensor service life. "The stepped voltage causes the sensor’s internal integrated circuit (IC) to be in a state of unstable current for a long time, accelerating the degradation of electronic components," said Zhang Wei, a senior electrical engineer at the factory.

3. Square Wave

Square wave inverters’ severe harmonic distortion is highly destructive to high-power electrical equipment. In a water treatment plant in Shandong, square wave inverters used to power centrifugal pumps caused the pumps’ windings to burn out twice within six months. Post-failure analysis found that the square wave’s high harmonics generated a large amount of heat in the pump windings, breaking down the insulation layer and leading to short circuits. "The service life of equipment powered by square waves is usually only 50%-70% of that powered by pure sine waves," noted Li Ming, an expert at the China Electrical Equipment Association.

How to Choose the Right Inverter to Extend Equipment Life?

Industry experts recommend targeted selection based on equipment types and application scenarios:

• For precision equipment (e.g., medical instruments, CNC machines), prioritize pure sine wave inverters with harmonic content ≤5% to avoid component damage from waveform distortion.

• For household appliances (e.g., refrigerators, air conditioners), choose modified sine wave inverters with harmonic content ≤12%, but avoid using them for devices with compressors (e.g., freezers) to prevent motor wear.

• For industrial high-power equipment (e.g., pumps, fans), strictly prohibit square wave inverters and opt for industrial-grade pure sine wave inverters with overload protection functions.

In addition, regular testing of inverter waveform parameters (e.g., harmonic distortion rate, voltage stability) is crucial. "Establishing a quarterly waveform detection mechanism can help detect potential risks in advance and extend the overall service life of electrical equipment by 20%-30%," added Li Ming.

As the demand for energy efficiency and equipment reliability grows, the impact of inverter waveform differences on equipment life will receive more attention. Choosing the right waveform inverter is no longer just a cost consideration, but a key measure to ensure stable production and reduce maintenance costs.
