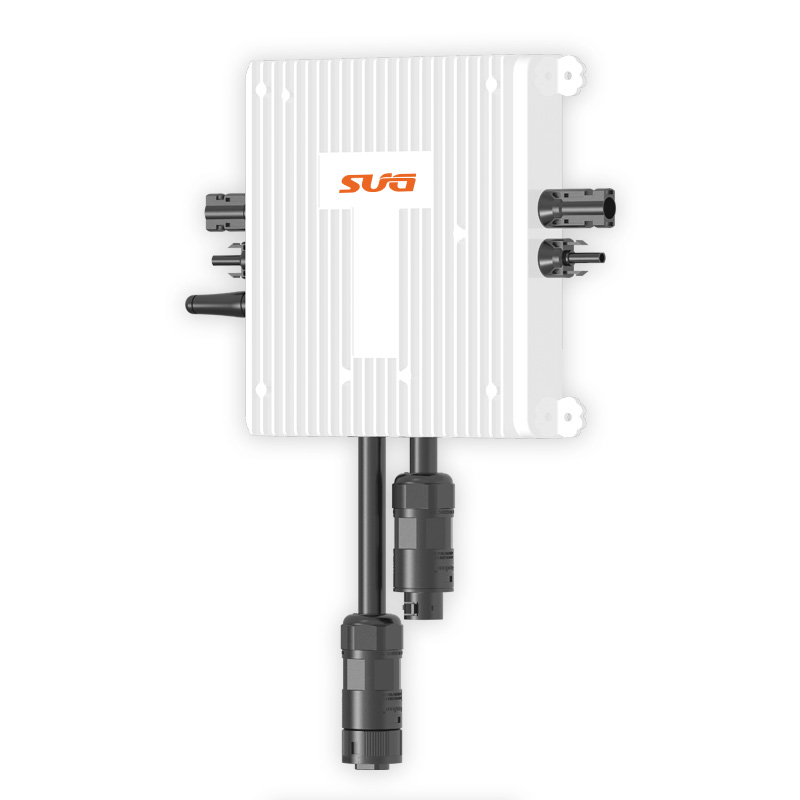

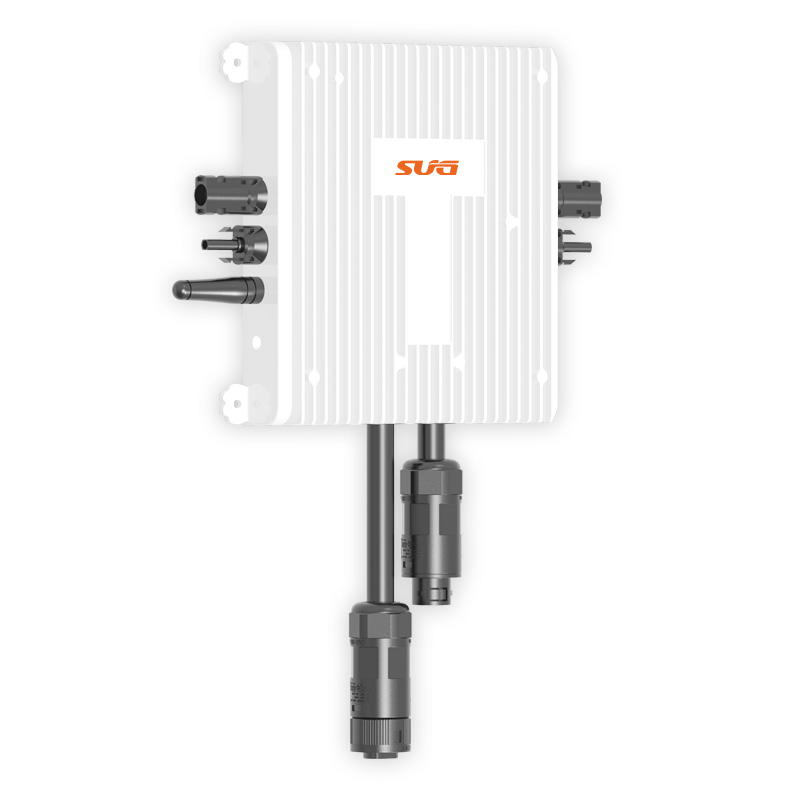

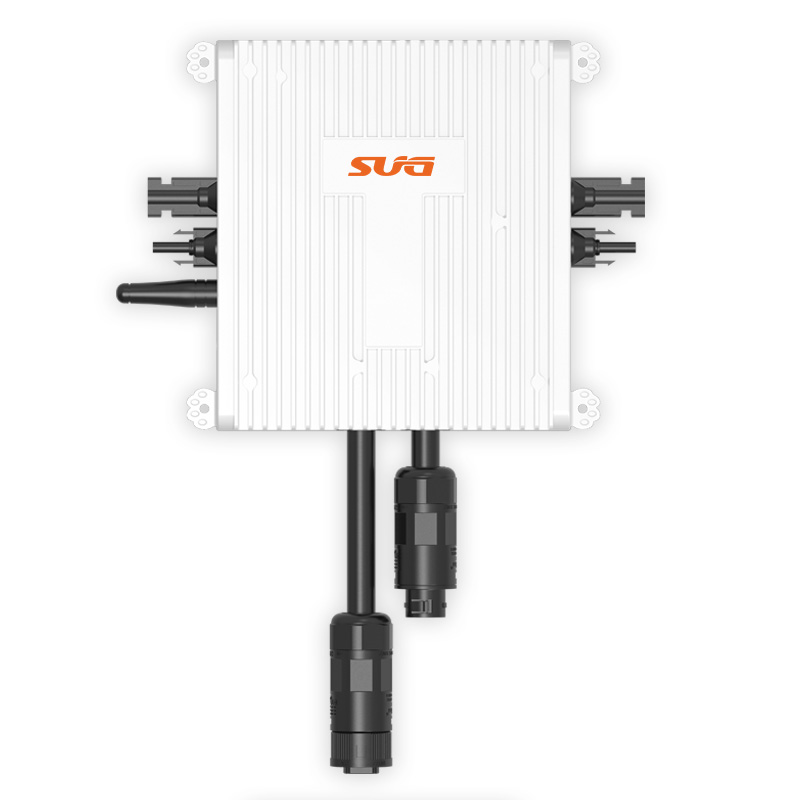

On off grid Microinverter 600W

On off grid Microinverter 600W

1.Solar panels output voltage <60VDC, which decreases the risk of an electrical fire. 2.One panel would match one MPPT, increasing 5-15% power in production compared to string

0577-62967308

Products Features:

1.Solar panels output voltage <60VDC, which decreases the risk of an electrical fire.

2.One panel would match one MPPT, increasing 5-15% power in production compared to string inverters.

3.Keeping each panel to work individually avoids the impact of partial shadows on the entire solar system.

4.Independently tracking each of the solar panels' production makes it easy to identify each solar panel's performance.

5.Flexible application allows it to switch to off-grid mode to supply AC power to home devices.

6.Lightweight and compact with plug-and-play connectors, it is easy to install.

7.Monitor the running station anytime, anywhere using the app.



Model SMI-600W2E1P
PV Input Data
Number of MPPT Trackers 2
Suggested Modules Range 300W~400W
Max. Input DC Voltage 60V
MPPT Operating Voltage Range 25~50V
Startup Voltage 20V
Overvoltage Class DC Port II
DC Port Backfeed Current 0 A
Max. Input Current 2 × 18 A
PV Array Requirement 2x1 Ungrouned array; No Additional PV side protection required
AC Output Data
Peak Output Power 1800W
Max. Continuous Output Power 600W
Max. Continuous Output Current 2.7A( 5A@120V)
Nominal Output Voltage 220/230Vac(187-278Vac) / 120V(60-144Vac)
Nominal Frequency/Range 50HZ/60HZ
Extended Frequency/Range 45~55Hz / 55~65Hz
AC Short Circuit Current 7.5A ( 13.7A@120V)
Max. Units Per Branch Circuit 3 PCS
Overvoltage Class AC Port III
Power Factor(Adjustable) >0.99 Default, 0.8 Leading...0.8 Lagging...
Level of Harmonics Distortion <3%
AC Protection Required AC Output Side Need 63A Circuit Breaker(on grid mode)
Efficiency
CEC Weighted Efficiency 95%
Peak Inverter Efficiency 97%
Static MPPT Efficiency 99%
Night Time Power Consumption <50mW
File Name Description Size Download
SMI-600W2E1P manual 2.02MB
