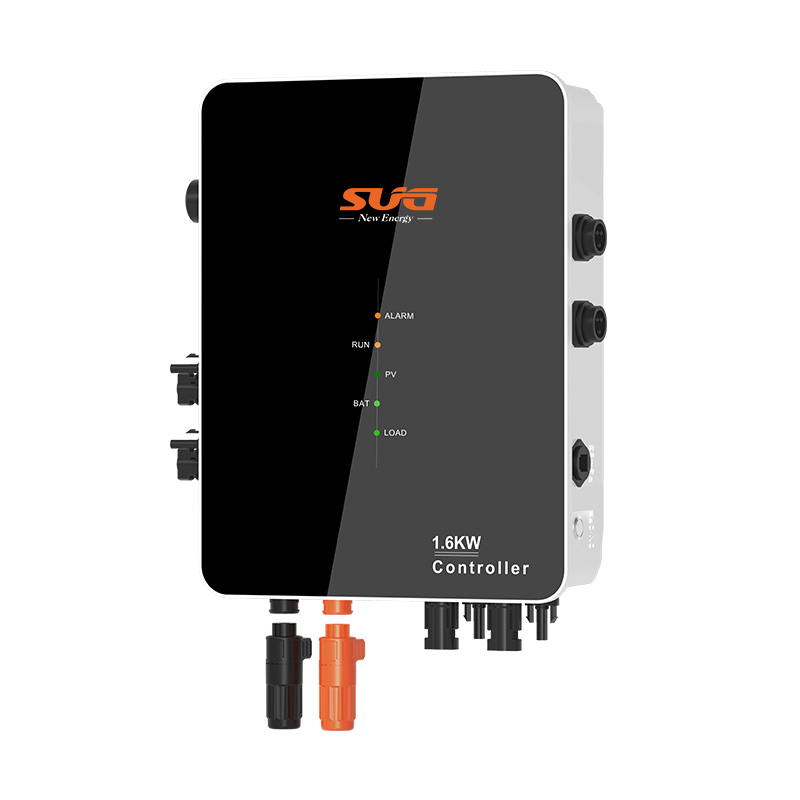

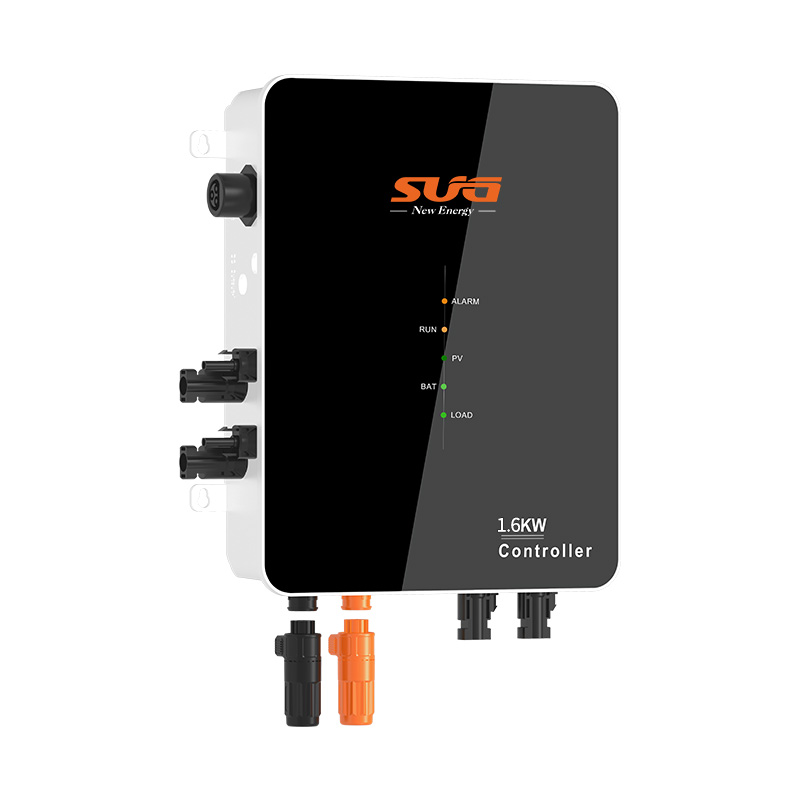

ESS solar controller 1.6KW

Send a Quote
Product Specifications

Products Features:

1.4 Independent MPPT trackers, maximize each solar panel output

2.Automatic battery voltage detection in 24V/36V/48V

3.Suitable for different battery types

4.MPPT tracking efficiency >99.9%, peak conversion efficiency >99%

5.With UPS function, keep your home devices running properly

6.6 LED lights clearly show all work status

7.Reverse polarity protection of solar panel and battery

8.Overcharge and overload protection

9.Flexibly monitor your solar harvest via APP


Model SGC 1.6KW
MPPT Solar Charger
Number of MPPT Trackers 2
PV Operating Voltage 20-60V
MPPT Operating Voltage Range 25-50V
Max. PV Open Circuit Voltage 60Vdc
Max. PV Array Power 2 x 1 Tracker 800W
Max. Charging Current 67A
Max. DC Load Current 2 x 30A
Self Consumption 2W
MPPT Tracking Efficiency 99.9%
Conversion Efficiency 98%
Protection Overload, Reverse Connection, Short Circuit, High voltage, High Temperature Protection
AC Charger(Optional)
Input Voltage Not available
Charge Current Not available
Charge Current Adjustable Not available
Customized Charge Time Not available
Battery Type Sealed, AGM, Gel, Flooded, Lithium, Lithium carbonate, User-defined
Battery Voltage Standard 24V
Battery Voltage Range 10V-60V
Customized Discharge Time Set Up the Discharge Time by APP
Communication Port RS485
Energy Management
Input Power from Microinverter 1.6KW
Qty of Microinverter 1pc SMI-1.2KW;2pcs SMI-800W
AC Loading (Back-up) 1.2KW 230Vac@1pc SMI-1.2KW
Loading Peak Power (Back-up) 3.6KW (with 1pc SMI-1.2KW)
AC Output (On-grid) 1.2KW 230Vac@1pc SMI-1.2KW
Output Power Factor (Adjustable) >0.99 Default, 0.8 Leading...0.8 Lagging...
UPS Switch Time <10mS
Level of Harmonics Distortion THD <3%
Protection Overload, Short Circuit, Battery Low Voltage, Battery Reverse Polarity, Lsland Protection
Net Weight 4.2KG
Dimensions 232*301*90 MM
Cooling Natural Convection-No Fans
