Product Specifications

Product Description

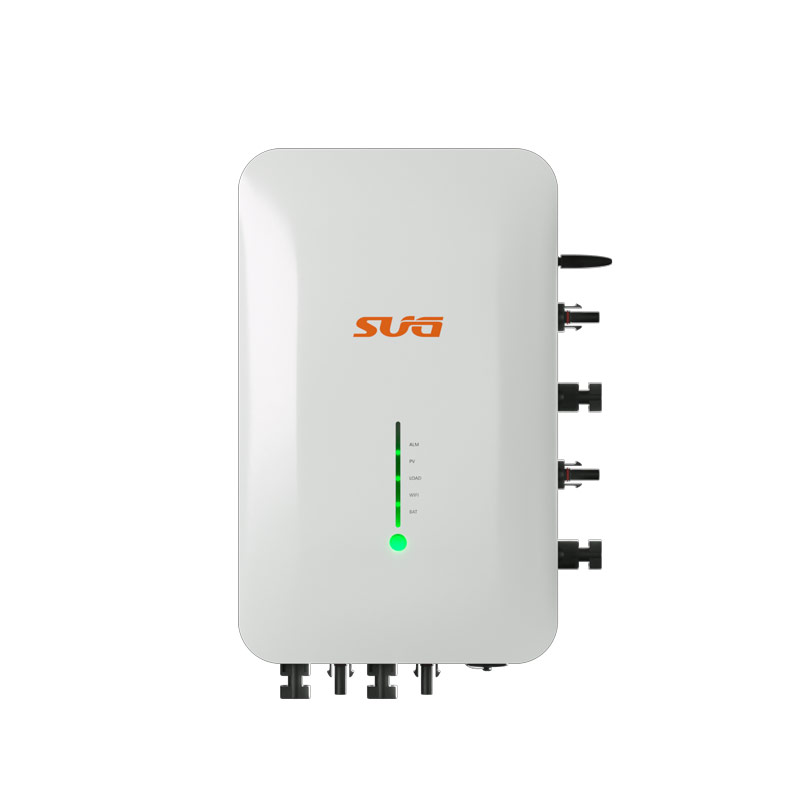

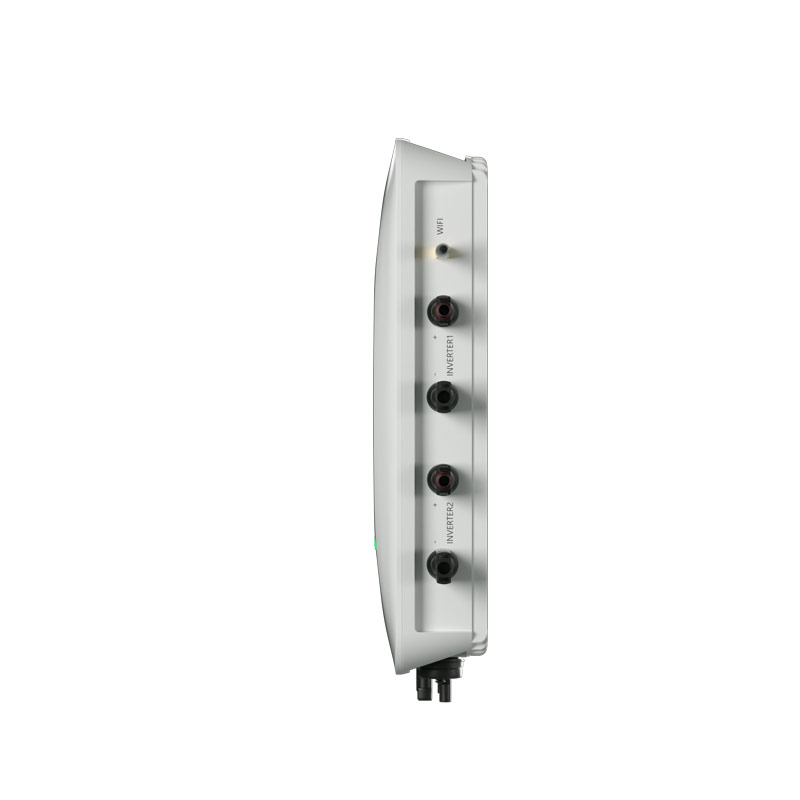

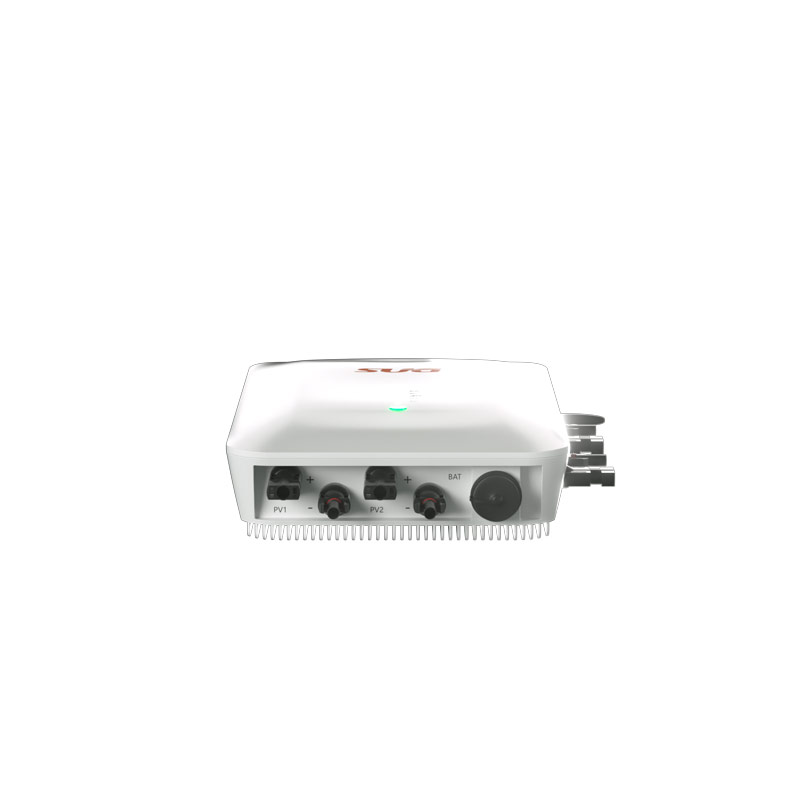

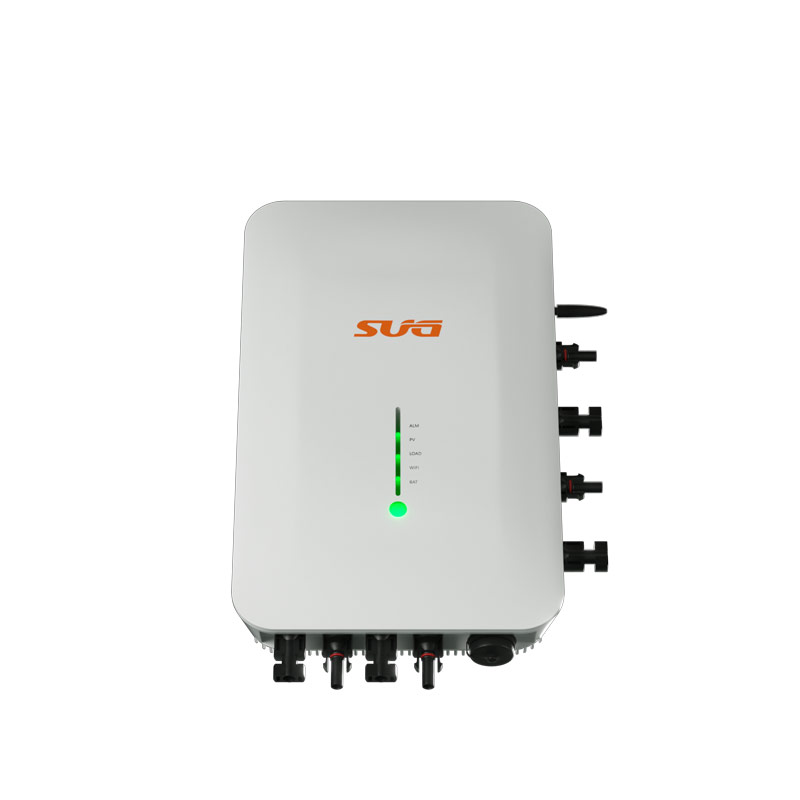

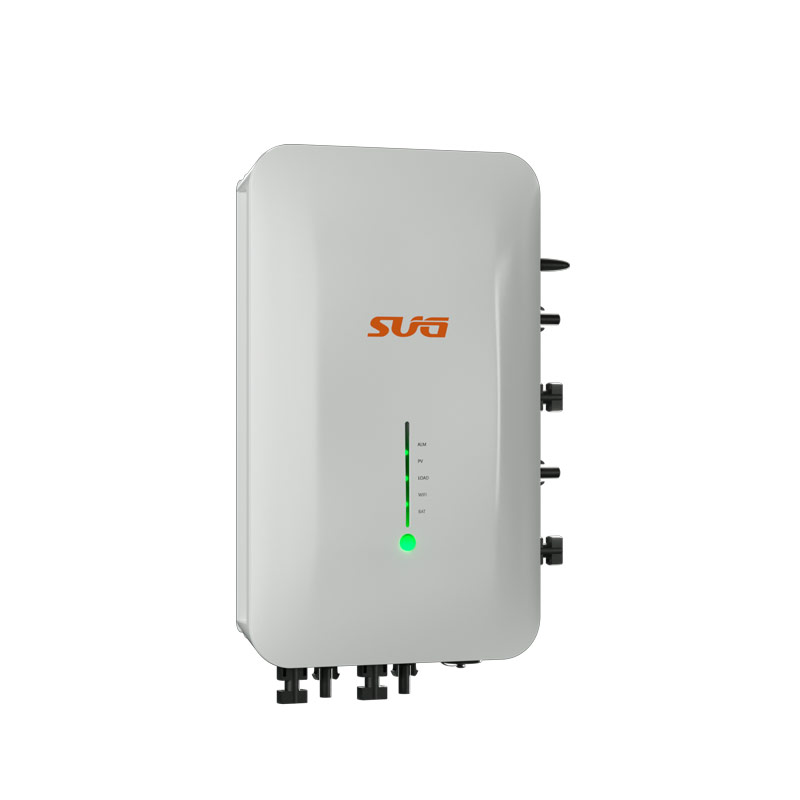

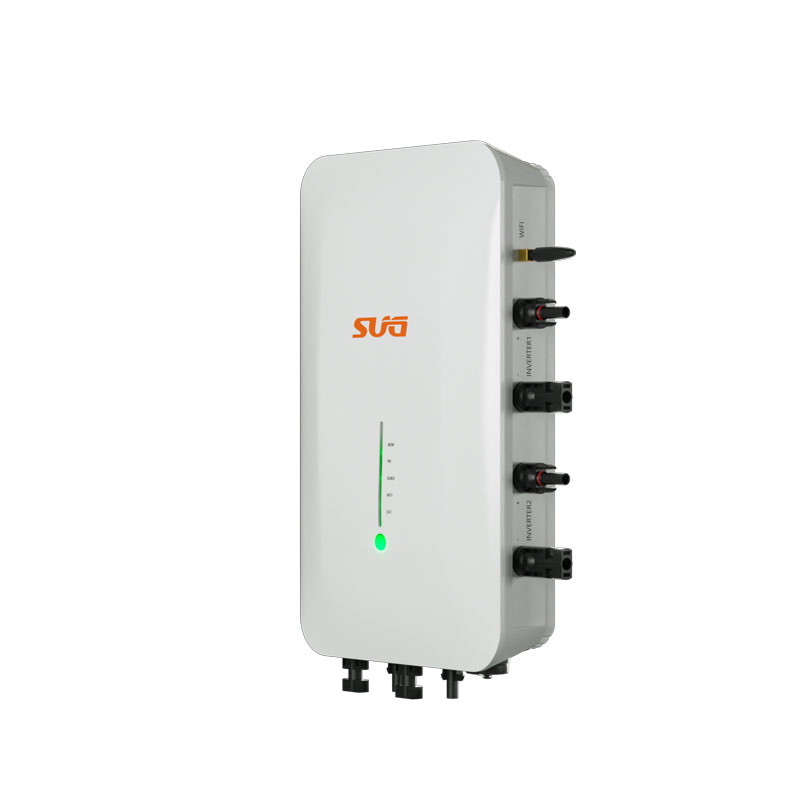

The Balcony Photovoltaic Energy Storage Controller (referred to as PV HUB) is an electrical system that regulates the operational states of electrical modules to enable photovoltaic panels to output more electrical energy. It acts as a bridge between solar energy, lithium batteries, and the external world. It efficiently stores the direct current generated by solar panels into batteries and connects them via microinverters to electrical loads and the power grid. This effectively addresses key technical challenges such as safety, availability, usability, and lifespan in photovoltaic energy storage systems.

Technical Parameters

PV Input Voltage Range	12V-60V	Peak Efficiency	98%
PV Input Power	800W×2 Max	MPPT Tracking Efficiency	99%
Output Voltage Range	18V-55V	Battery Short-Circuit Protection Current	66A
Output Power	800W×2 Max	Operating Ambient Temperature	-20°C-65°C
Battery Voltage Range	40V-58.4V	Protection Rating	IP65
Battery Charging Power	1600W Max	RS485, CAN Communication	Supported
EMC Class	CLASS-B	Wi-Fi Communication	Supported
W	≈3.2kg	Dimensions	340×213×67mm
PCBA Weight	≈590g	PCBA Dimensions	280×160×35mm
