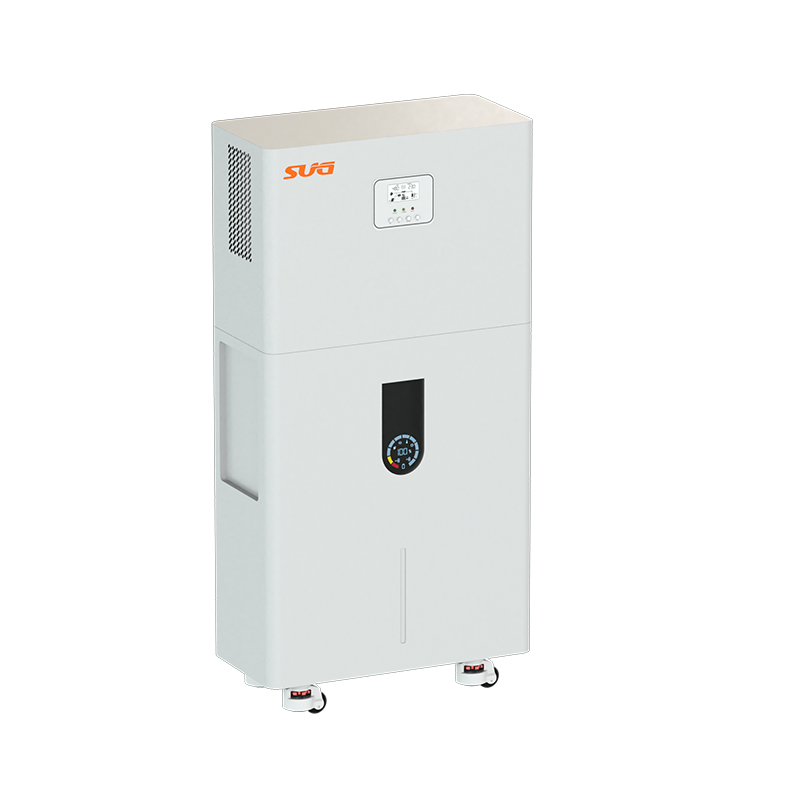

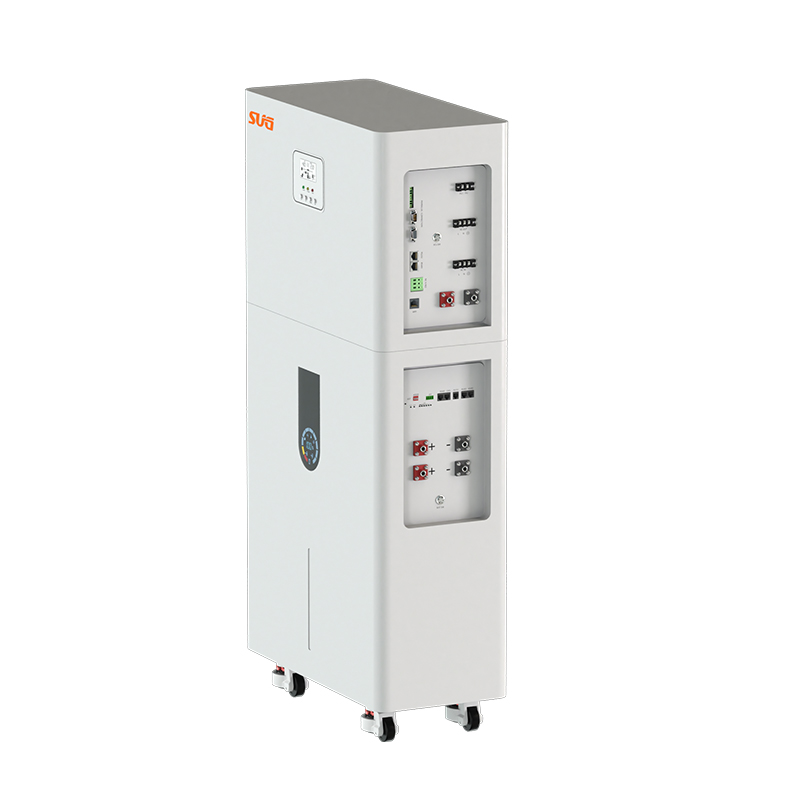

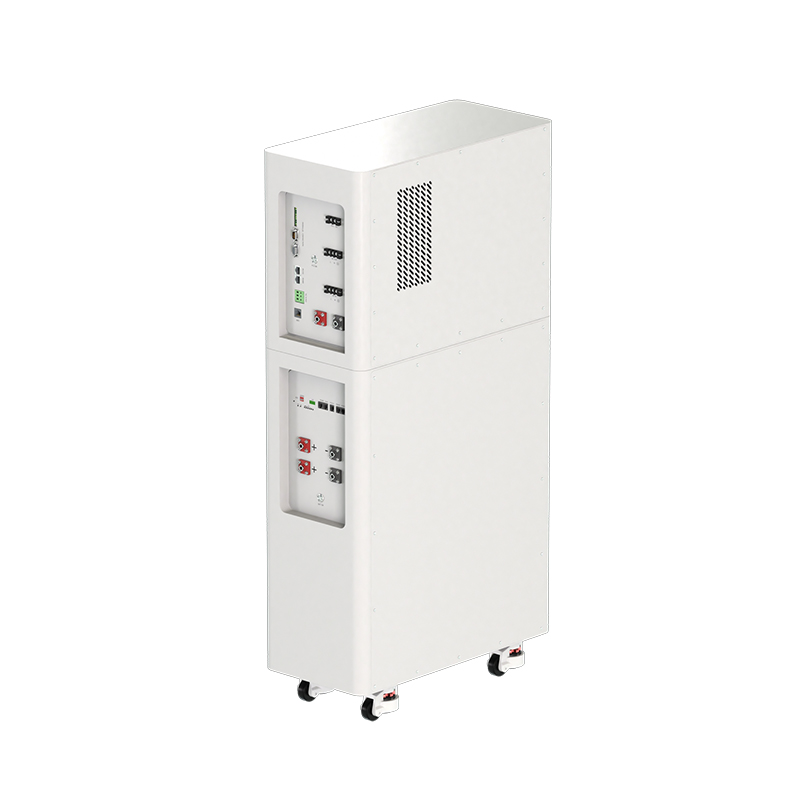

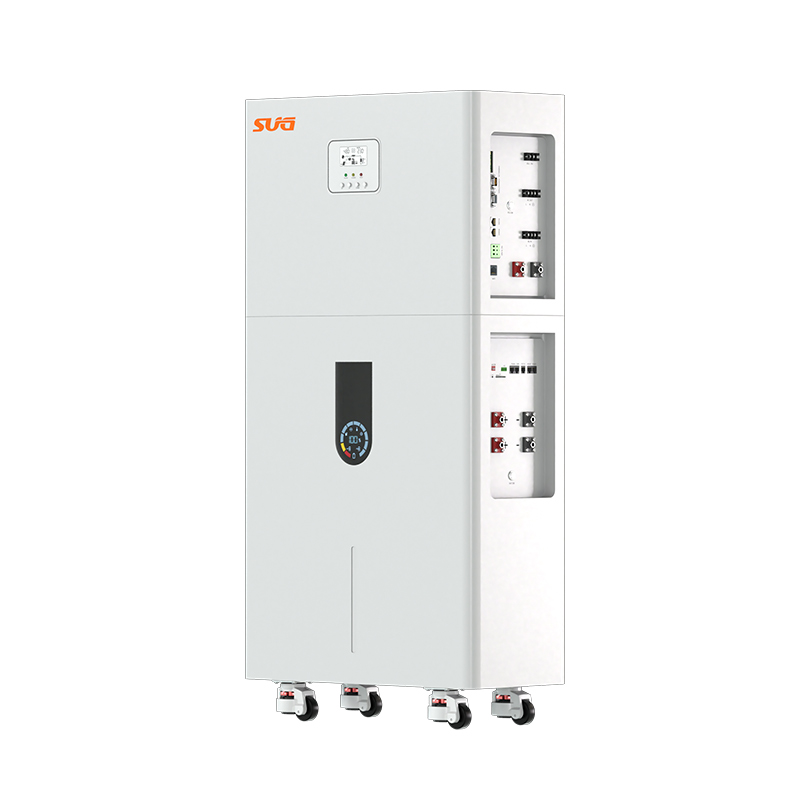

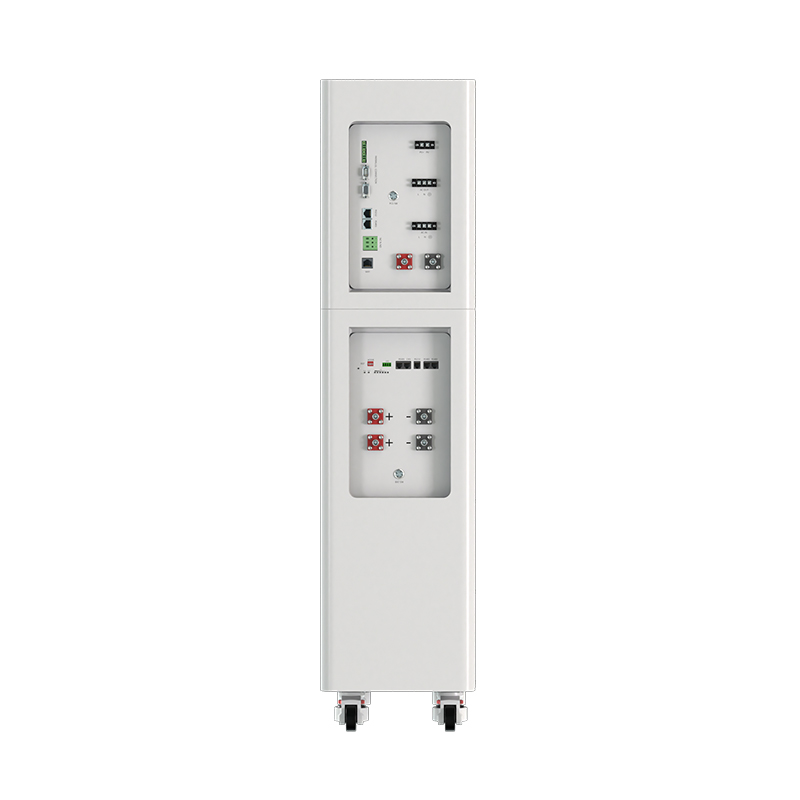

Name: 51.2V 200AH+6.2KW All-in-One Energy Storage Lithium System
Brand: 默认品牌
SKU: 02079
Rating: 4.9 (1090 reviews)

Product Specifications

Model	51.2V 600Ah+6.2kW
Standard voltage	51.2V
Standard capacity	200Ah
Rated capacity	10.24kWh
Operating Voltage Range	43.2-57.6V
Standard charging current	100A
Standard discharging current	100A
Suggested DOD	80%
Cycle life	>6000 cycles
IP Rating	IP21(IP65 optional)
Discharge operating temperature	-10℃-55℃
Charging operating temperature	0℃-45℃
Maximum parallel	15PCS
Communication	RSRS232 / CAN / RS485 / WIFI / BT
Display	LCD color screen / LCD touch screen (optional)
Warranty	5 Years
Certificate	UN38.3/MSDS/CE/ROHS/FCC
NW. (kg)	87.4
GW.(kg)	109.2
Product size (mm)	750650215
Package size(mm)	940630460

Model	6.2kW
AC/Generator input
Rated input voltage	220/230/240VAC
Voltage range	90-280VAC ± 3V (household appliance mode) 170-280VAC ± 3V (UPS mode)
Frequency	50/60Hz (adaptable)
Inverter output
Rated power	6200W
Output voltage	220/230/240VAC±5%
Waveform	Pure sine wave
Switching time (adjustable)	Computer equipment 10ms, household appliances 20ms
Peak power	12400W
Battery
Battery type	Lithium ion batteries/lead-acid batteries/user-defined
Rated battery voltage	48Vdc
Battery voltage range	40~60Vdc
PV input
PV charging method	MPPT
PV maximum input powe	8500W
Maximum PV Input Current	27A
MPPT tracking range	60-500VDC
Maximum PV charging current	120A
Maximum AC charging current	100A
Maximum total charging curr Inverter output ent	120A
Basic parameters
Communication interface	USB/RS485 (optional WiFi)/dry node control
Parallel interface	Parallel function (optional)
Product size (mm)	550414271.2
Package size（mm）	652516403
NW. (kg)	27.6
GW. (kg)	41
